Multi-Touch Controller PCAP Capacitive Touch Screen Controller Board-ILI2511

Product Features

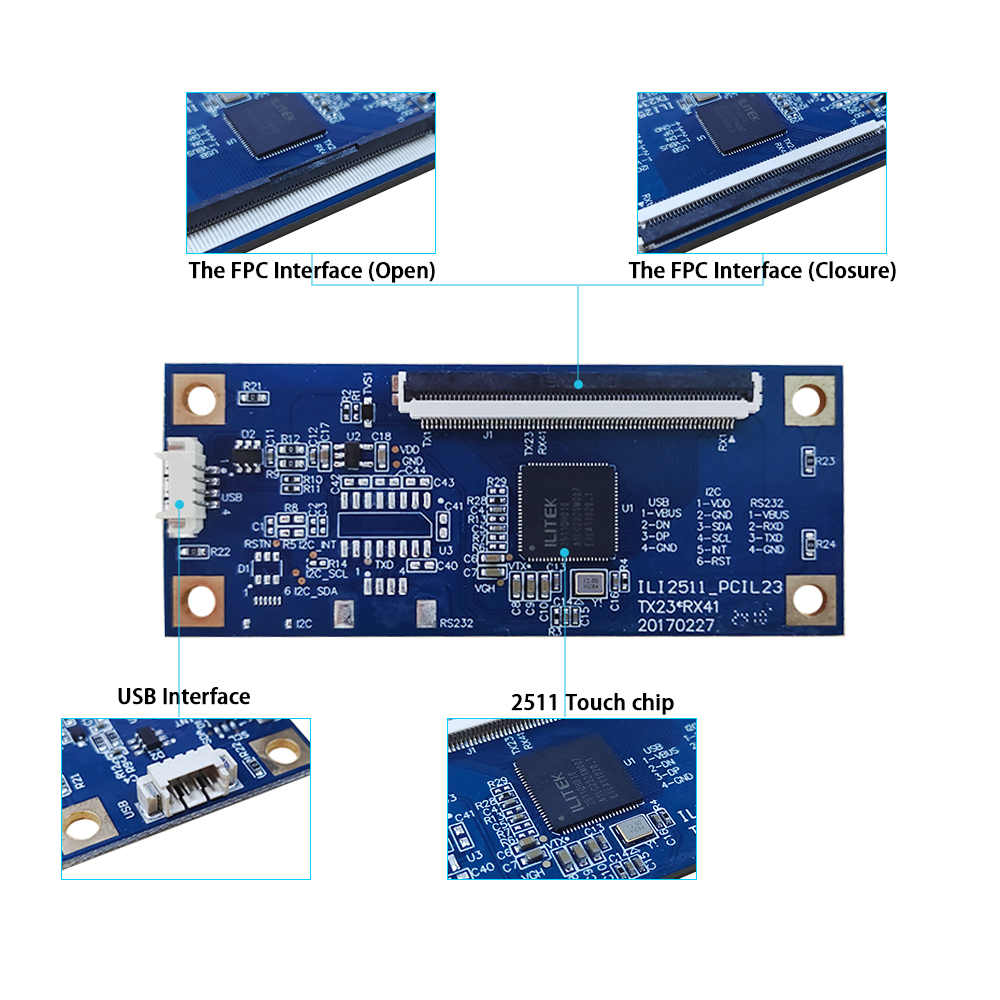

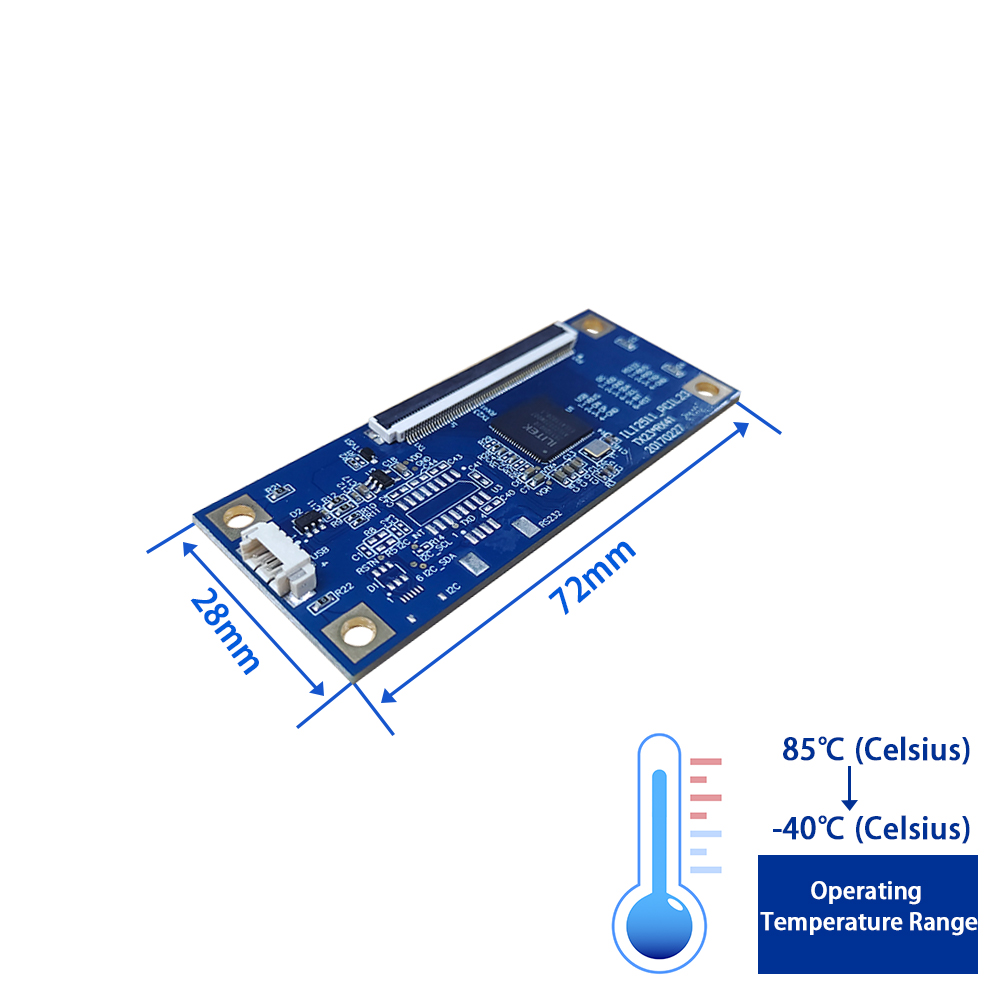

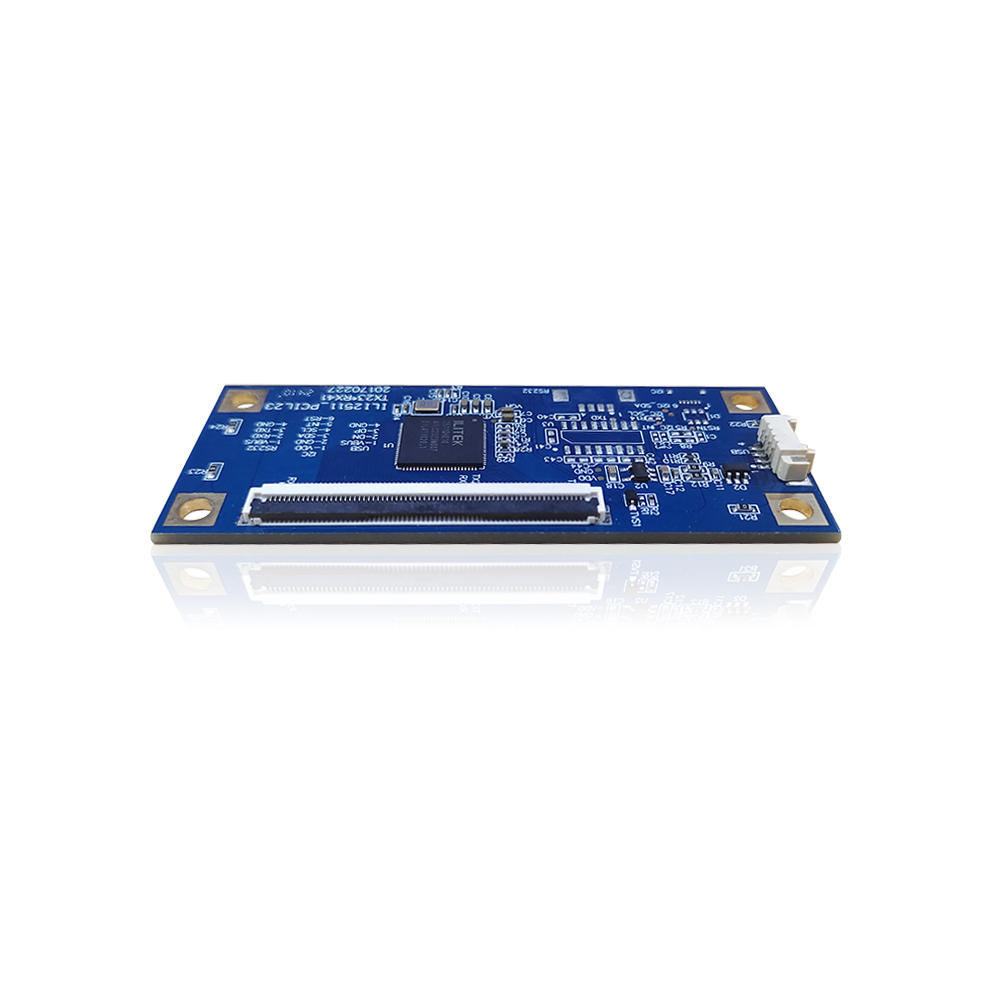

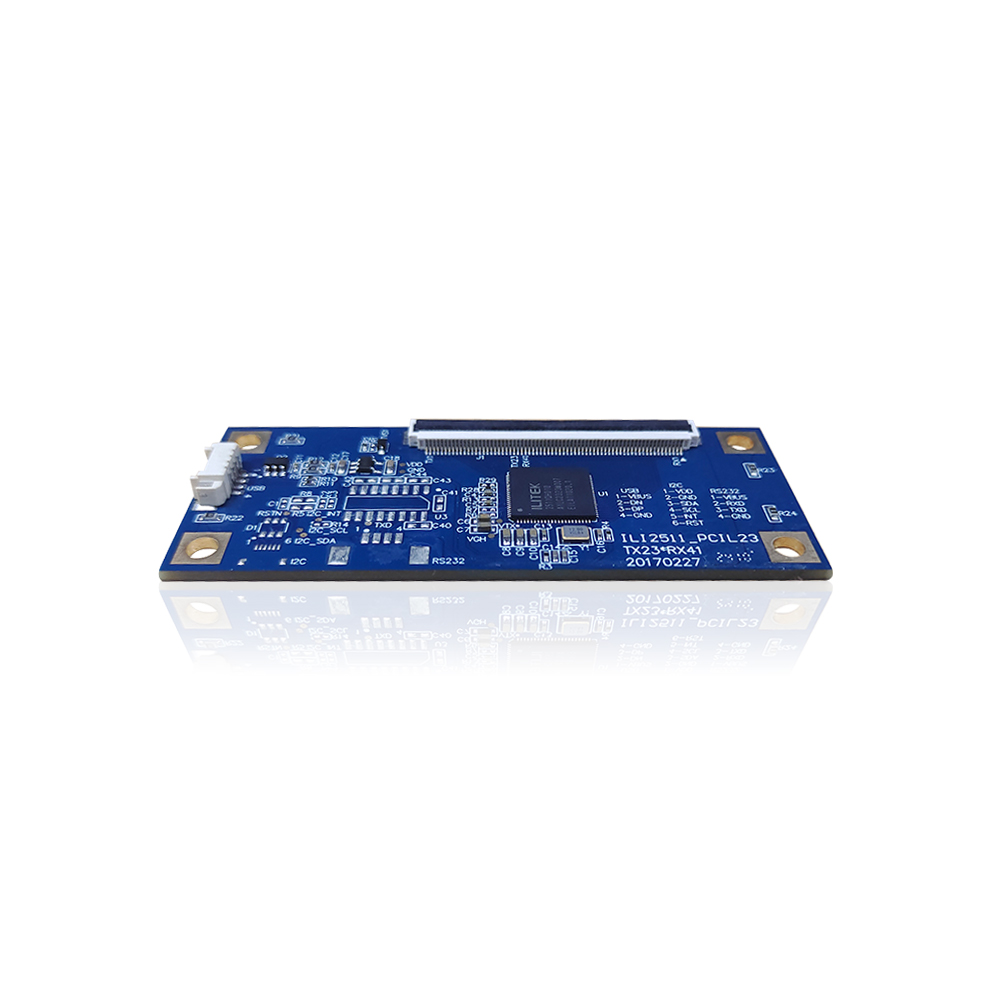

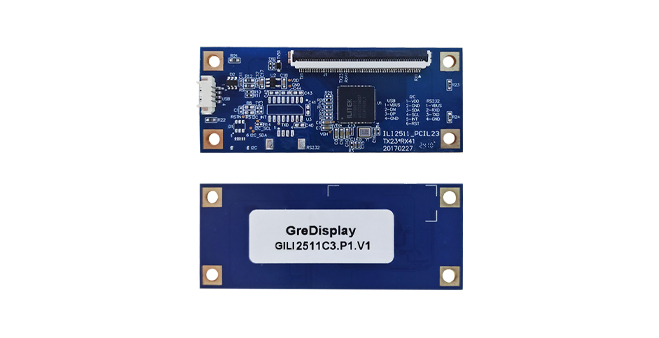

     GILI2511P.C3.P1.V1 capacitive touch control board has 64 channels, including 23 TX channels and 41 RX channels. It supports Win8.1/Win10 certification for screens below 13.3 inches, and supports industrial control up to 15.6 inches. The control board is based on the ILI2511 single capacitive control chip. ILI2511 has a built-in 32-bit MCU and a high-speed CDC module (capacitance to data conversion module). It has a total of 64 channels, including high-voltage programmable drive and sensing channels and an internal boost module with automatic calibration function. GILI2511P.C3.P1.V1 supports TP stacking structures such as GG, GFF, G1F, and GF2. It is currently mass-produced and applied in AIO, ATM, POS machines, industrial control equipment, etc. It meets the Restriction of Hazardous Substances (RoHS) and Electromagnetic Compatibility (EMC) standards.
