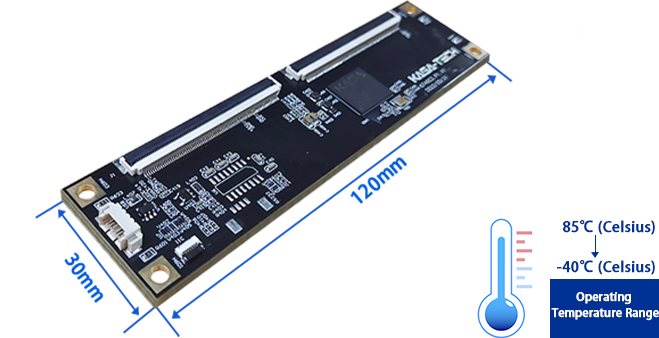

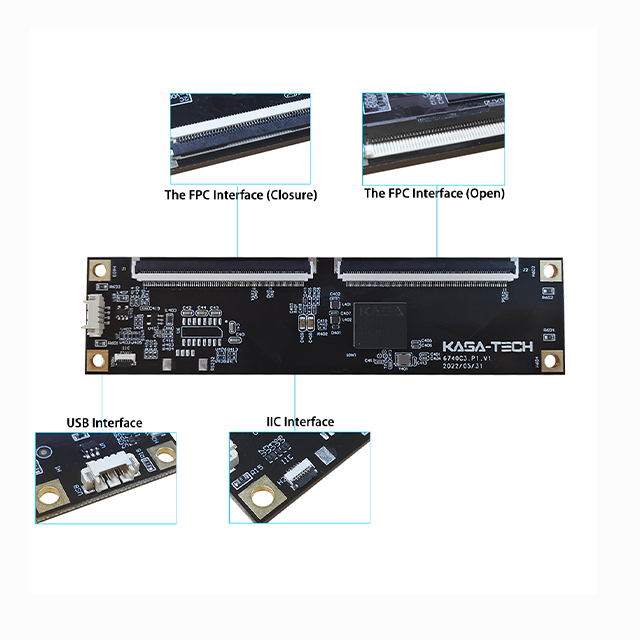

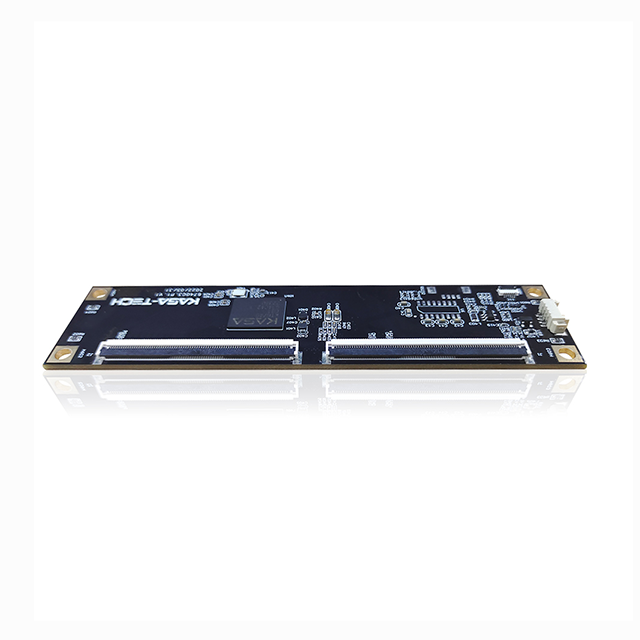

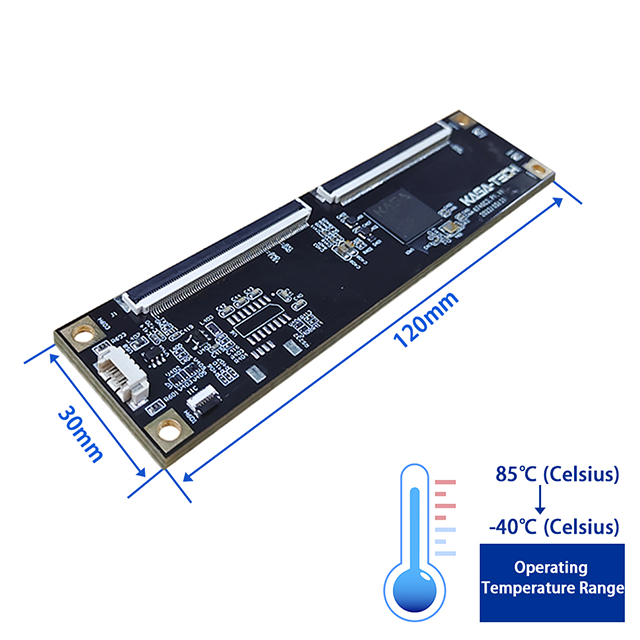

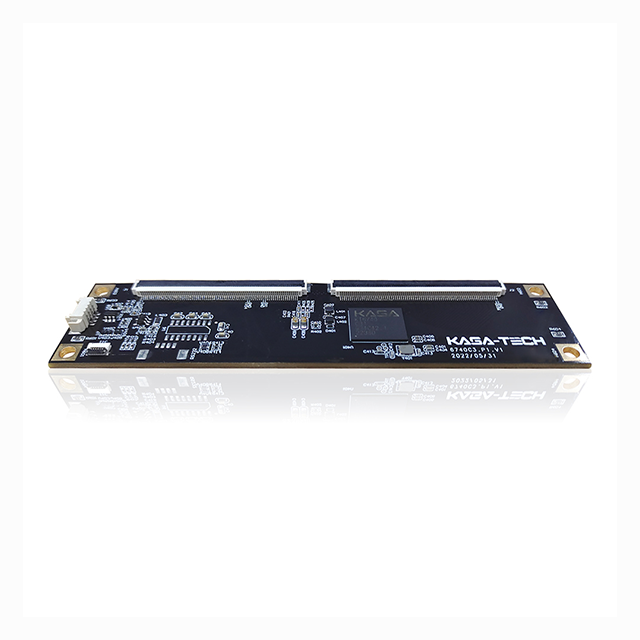

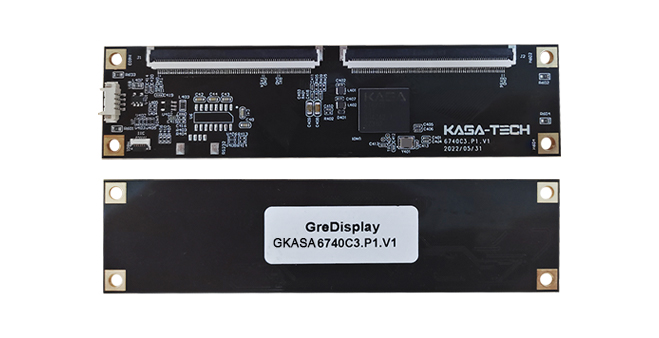

Product FeaturesGKASA6740C3.P1.V1 capacitive touch control board has 150 TRX channels. It supports USB, I2C, RS232 interfaces, and supports up to 43 inches of industrial control. The control board is based on the KT6740 single capacitive control chip. KT6740 has excellent noise immunity and high signal-to-noise ratio due to its unique driving technology and algorithm. The noise immunity can meet the IEC-61000-4-6 CS 3Vrms requirements. GKASA6740C3.P1.V1 supports G/G (DITO), G/G (SITO), GFF, GF2, FFF and On-Cell touch panel stacking, and is currently used in POS, ATM and industrial HMI applications. It meets the Restriction of Hazardous Substances (RoHS) and Electromagnetic Compatibility (EMC) standards. |  |
 | Support System ♦ Windows: Windows 7~10/Windows 2000/ XP/Vista/CE5.0/Windows CE 6.0/Windows CE7.0/XPEmbedded U ♦ Linux:Kernel2.6.31 Downwards (x86, 32/64 bit)/(ARM/MIPS, 32/64 bit)/(x86, 32/64-bit) (Need X-Window)/(x86, 32/64-bit) (Need X-Window) ♦ Android :Android 4.2.xUpwards (ARM,32-bit) |
