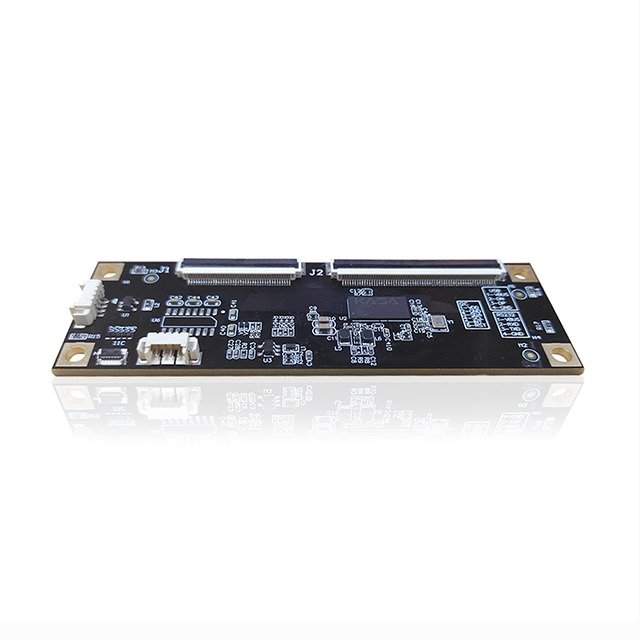

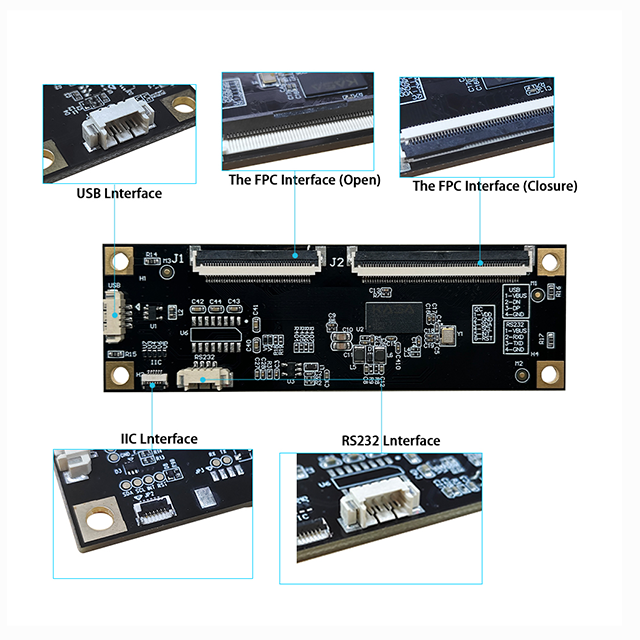

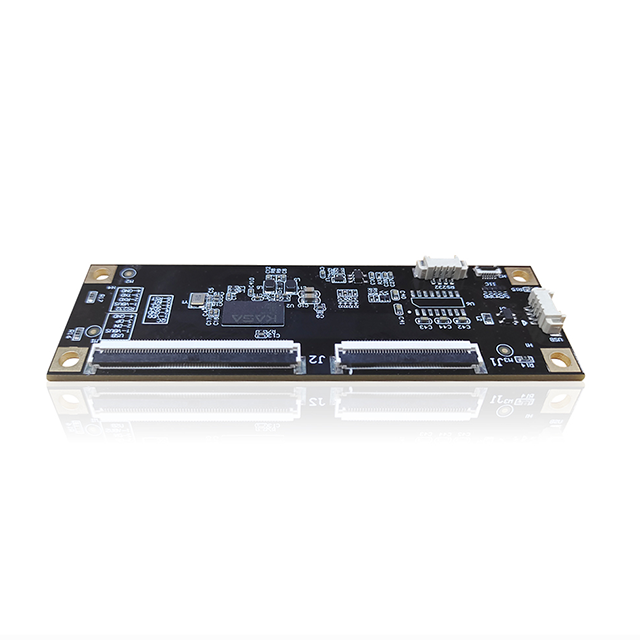

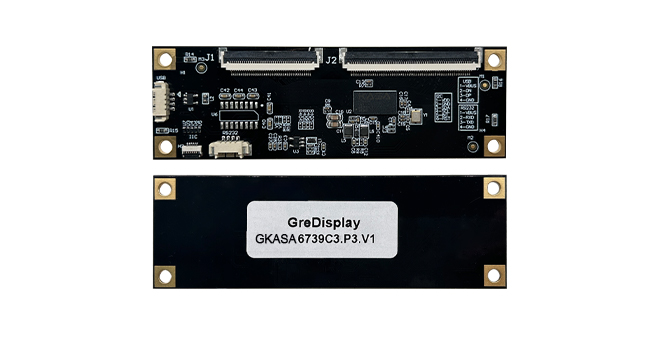

Product OverviewGKASA6739C3.P3.V1 capacitive touch control board has 96 TRX channels, it supports USB, I2C, UART interfaces, and supports up to 27 inches of industrial control. The control board is based on the KT6739 single capacitive control chip. KT6739 has excellent noise immunity and high signal-to-noise ratio with its unique driving technology and algorithm. The noise immunity can meet the requirements of IEC-61000-4-6 CS 3Vrms. GKASA6739C3.P3.V1 supports G/G (DITO), G/G (SITO), GFF, GF2, FFF and On-Cell touch panel stacking, currently used in POS, ATM and industrial HMI applications. Meet the Restriction of Hazardous Substances (RoHS) and Electromagnetic Compatibility (EMC) standards. |  |
 | Product Description ♦ Windows: Windows 7~10/Windows 2000/ XP/Vista/CE5.0/Windows CE 6.0/Windows CE7.0/XPEmbedded U ♦ Linux:Kernel2.6.31 Downwards (x86, 32/64 bit)/(ARM/MIPS, 32/64 bit)/(x86, 32/64-bit) (Need X-Window)/(x86, 32/64-bit) (Need X-Window) ♦ Android :Android 4.2.xUpwards (ARM,32-bit) |
