Capacitive PCAP Touch Controller Board-ILI2511

Product Features

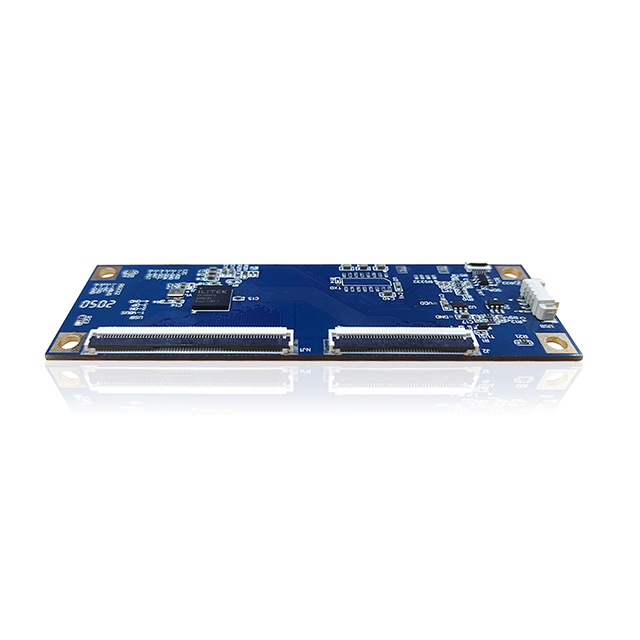

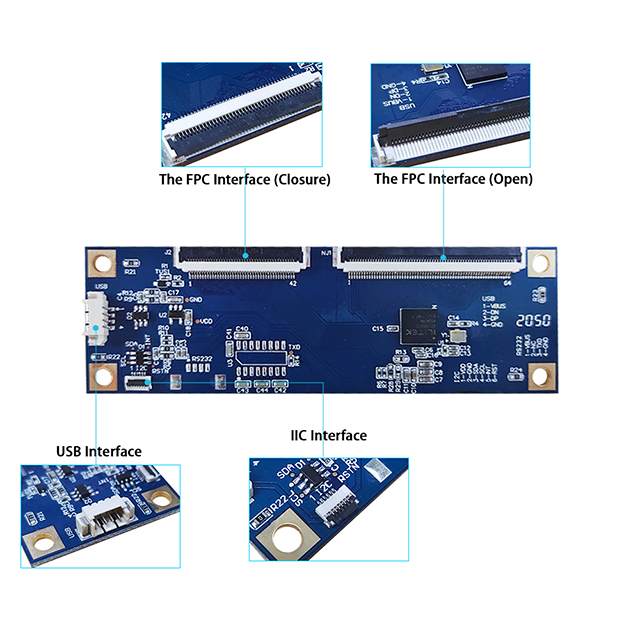

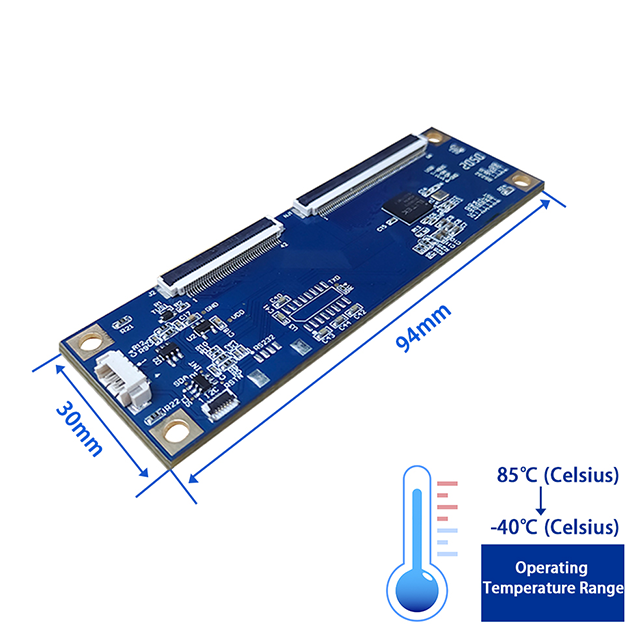

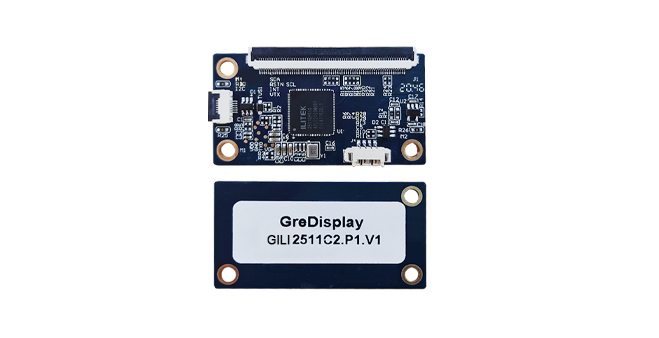

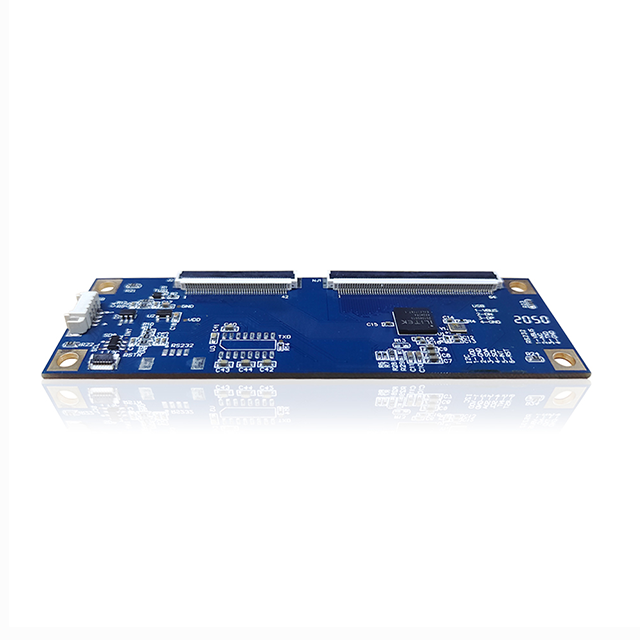

     GILI2511P.C2.P1.V1 capacitive touch control board has 64 TRX channels, supporting up to 17.3-inch industrial control panel. The control board is based on the ILI single-chip IC-ILI2511-built-in 32-bit MCU, and has a high-speed CDC module (capacitance to data conversion module), which can support three-interface mode communication including USB, I2C, and has an internal boost module for internal self-calibration. GILI2511P.C2.P1.V1 capacitive touch control board can support a variety of touch structures, including G/G,OGS, G1F, G/F/F, GF2, On-Cell and other TP stacks. Currently, there are mass production results, mainly used in AIO, POS machines, industrial control equipment, etc. Meet the restriction of hazardous substances (R.HS) and electromagnetic compatibility (EMC) standards.
