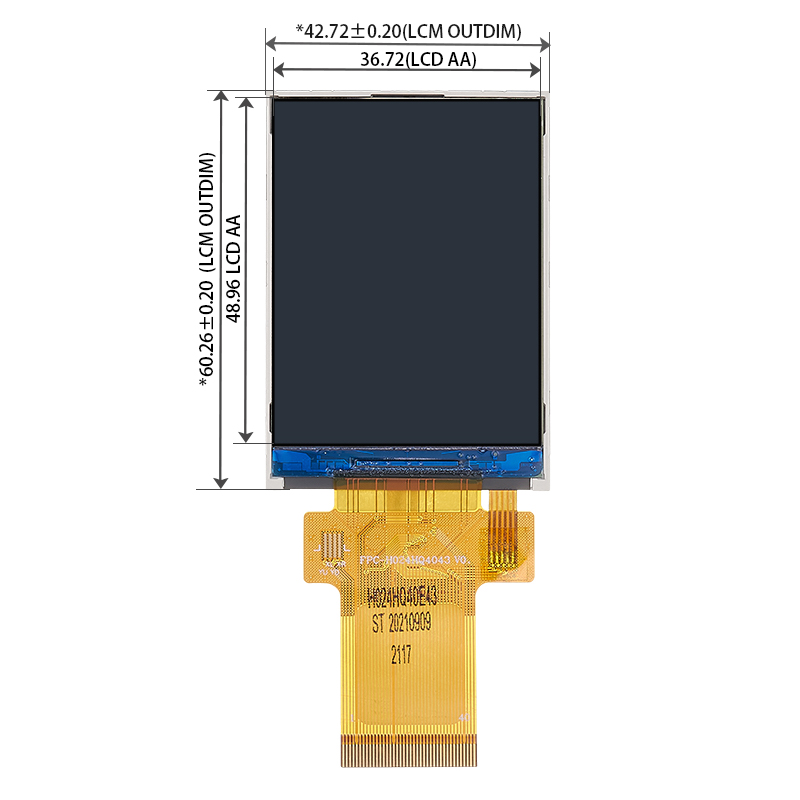

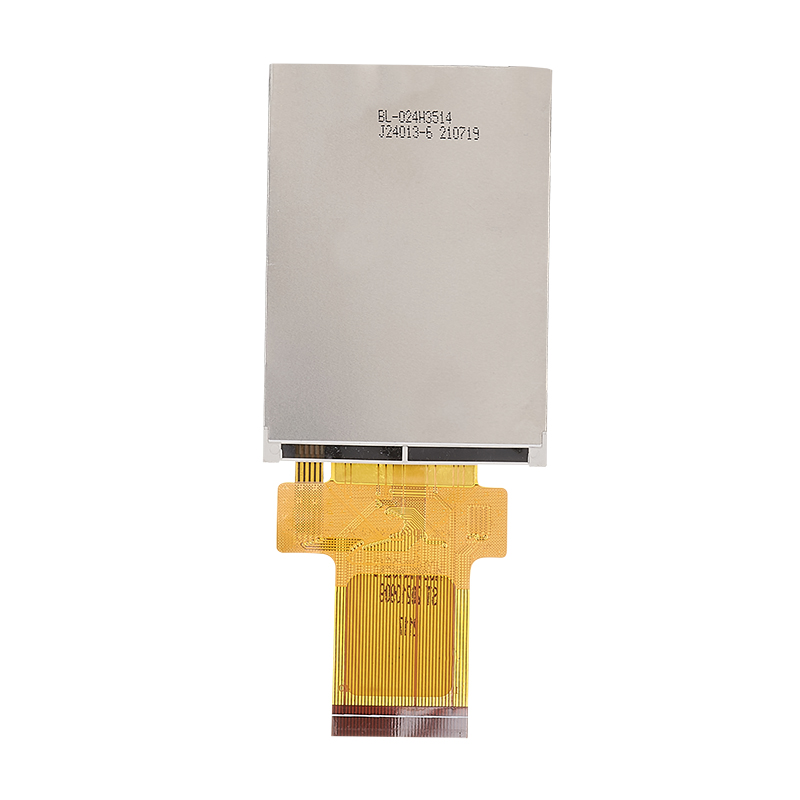

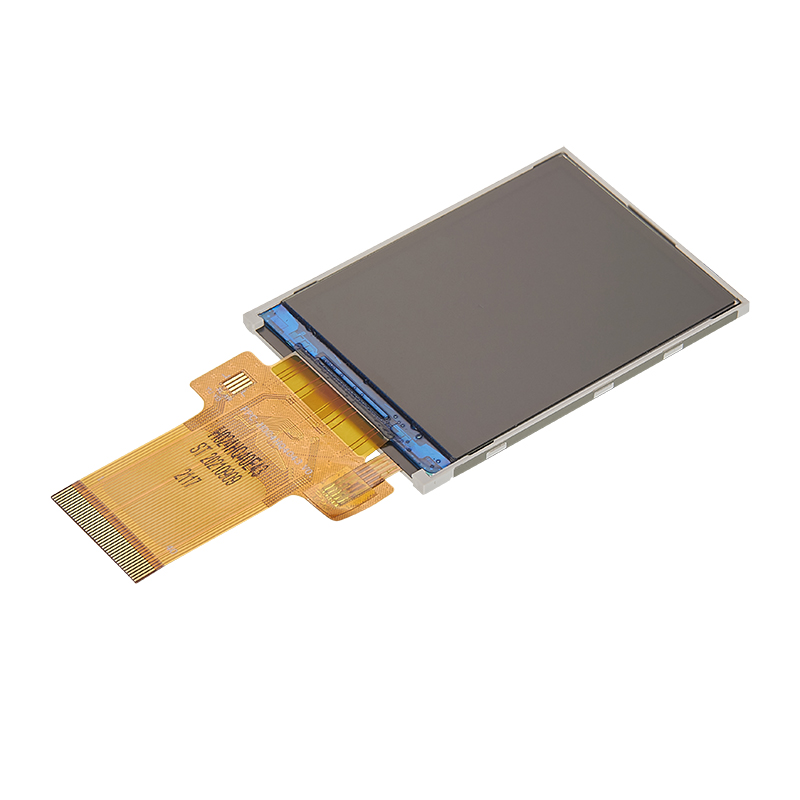

2.4 inch LCD screen 240×320 MCU interface TFT-LCD liquid crystal display module

★ Regular Size: 2.4 inch
★ Model: H024HQ40E2543
★ Resolution: 240×320
★ Interface: 40PIN MCU
★ Dimensions size:  42.72(W) ×60.26(H)×2.2+/0.1(T)
★ Viewable size: 36.72(W) ×48.96(H) mm
★ Brightness：250cd/m²
★ Viewing  angle 12 o’clock
★ Operating temperature -20℃ ~ +70℃
★ OEM/ODM: Support
★ Warranty: 1 Year
Availability:
Inquire Add to Basket

Previous:
Next:

Contact Us

WhatsApp: +86 19864941790
 Email: domi@gredisplay.com
 WeChat: +86-13926514586
WhatsApp
WhatsApp
WeChat
WeChat
Product Description
Technical Parameter

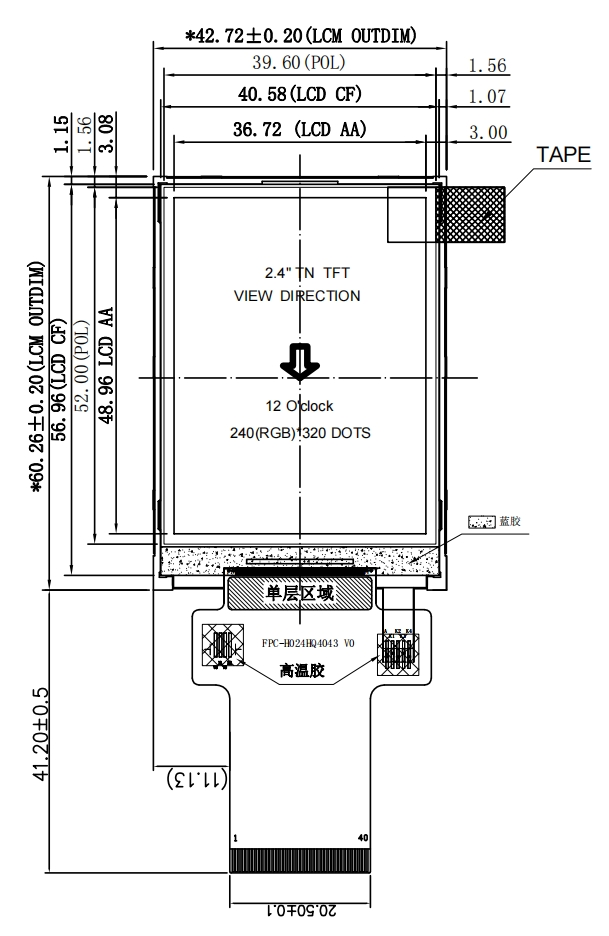

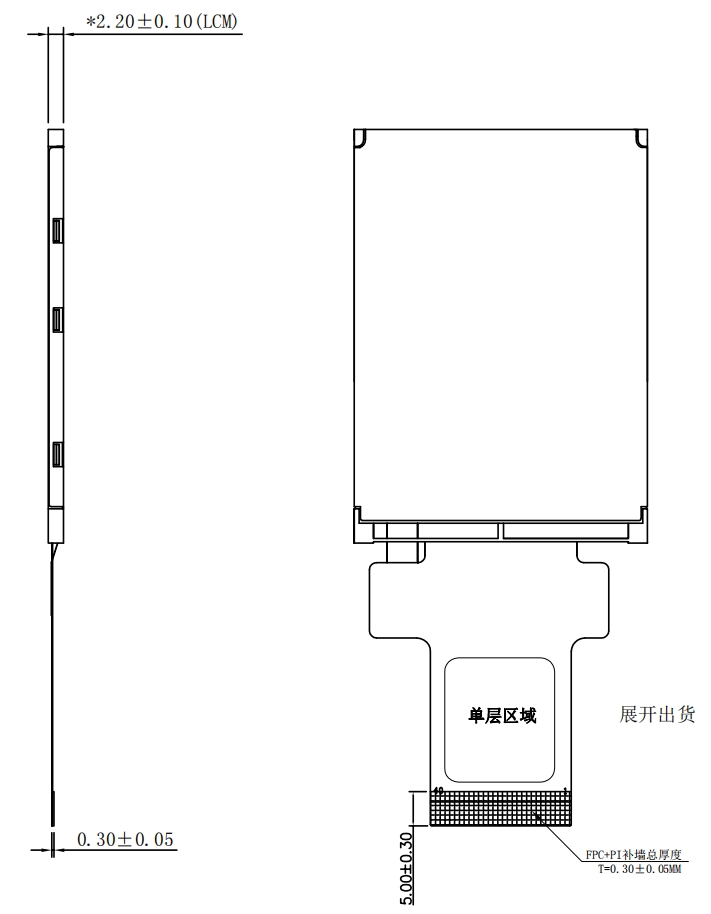

17020037758253701702003788323094



Technical Parameter

Product Name:

LCD Panel

Sizes：

1.8 to 10.1 inches

LCD Brand：

GreDisplay

Screen Type：

a-Si TFT-LCD

Ratio(H:V)：

16:9,16:10,4:3,5:4

Resolution:

Standard resolution

Brightness：

200-1000cd/m²

Color:

16.7M

Contrast Ratio:

500-1000:1

Response Time：

10-25 ms

Refresh Rate:

60Hz

View Angle:

Standard

Operating Temperature:

-30 ~ 70 °C

Storage Temperature:

-30 ~ 80 °C

Warranty:

One year

OEM/ODM:

Support
