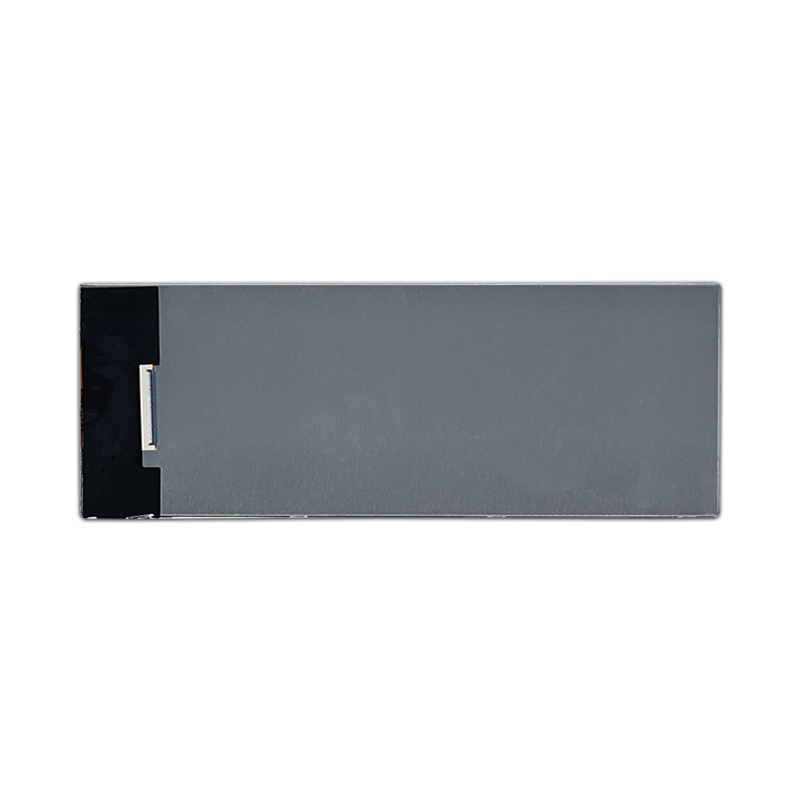

6.86-inch bar LCD screen 480×1280 MIPI interface 40pin TFT-LCD long bar LCD module

★ Regular Size: 6.86 inch
★ Model: H069KHD40I7003
★ Resolution: 480×1280
★ Interface:  40PIN MIPI

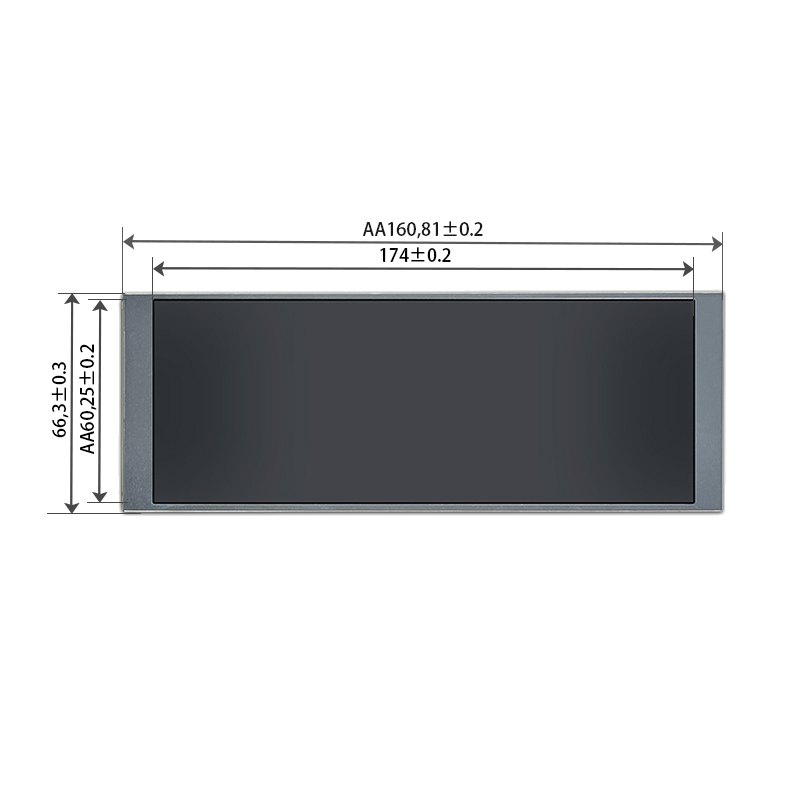

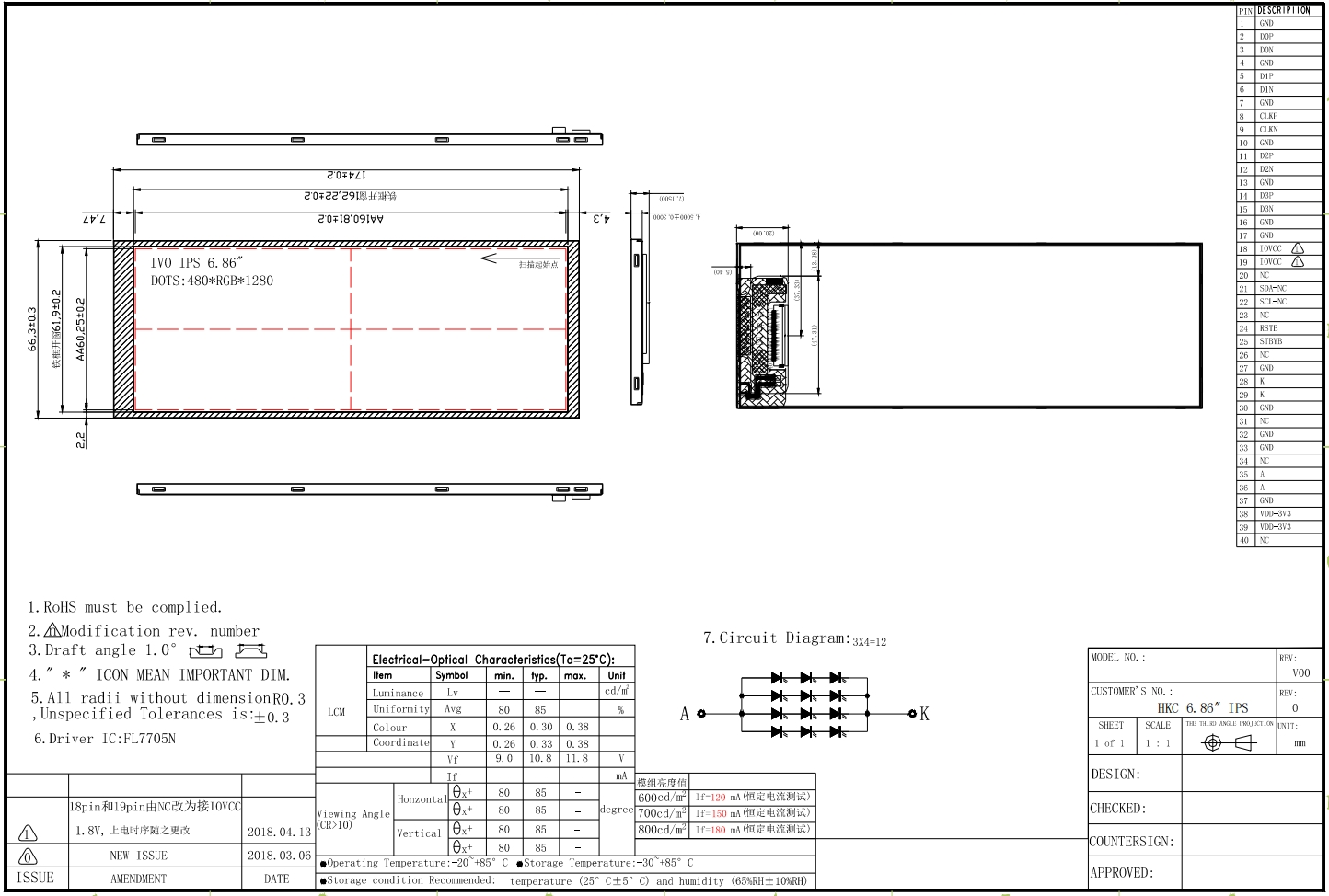

★ Dimensions size:  66.3(W)×174(H)×4.5(T)
★ Viewable size: 60.25(W) × 160.81(H) mm
★ Brightness:700 cd/m²
★ Viewing all angle
★ Operating temperature -20℃ ~ +70℃
★ OEM/ODM: Support
★ Warranty: 1 Year
