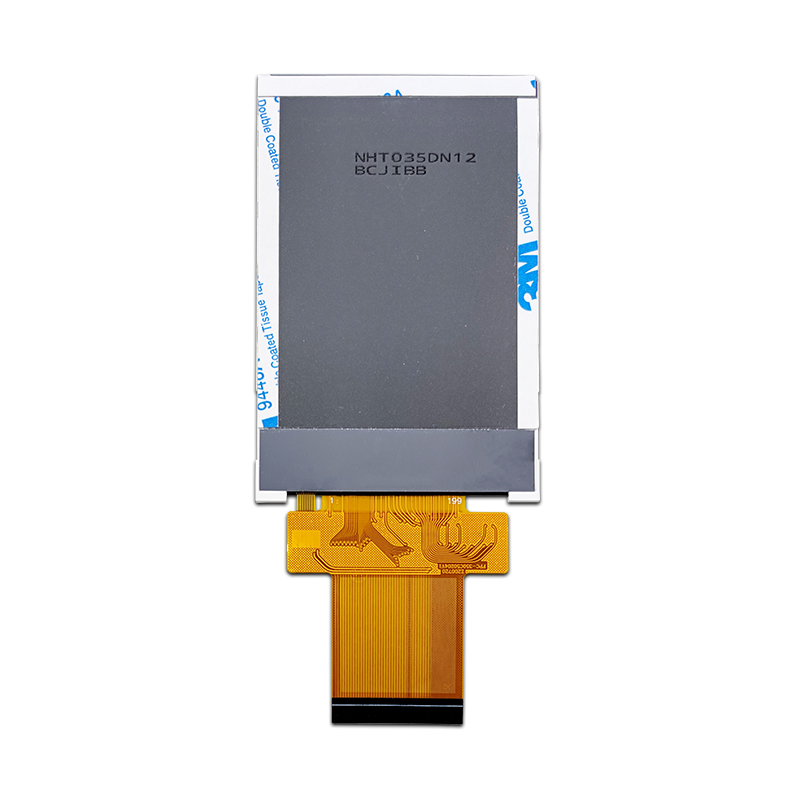

3.5-inch LCD screen, vertical screen, 320×480, RGB interface, TFT-LCM LCD display module

★ Regular Size: 3.5 inch
★ Model: H035SHV50I3030 V1
★ Resolution: 320×480
★ Interface:  50PIN SPI/MCU/RGB

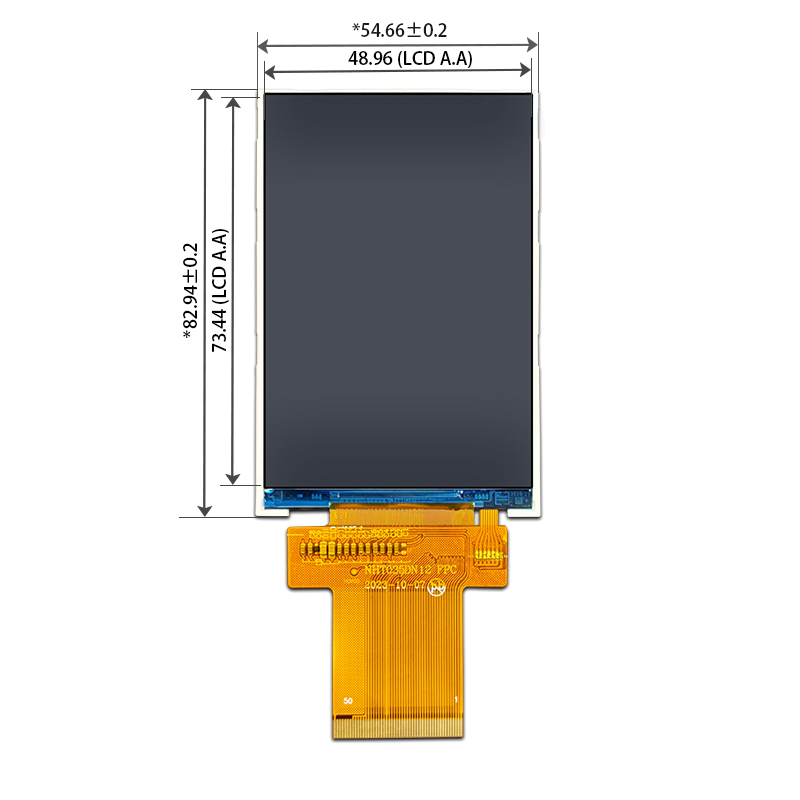

★ Dimensions size:  54.66(W)×82.94(H)×2.25(T)
★ Viewable size: 48.96(W) ×73.44(H) mm
★ Brightness：300 cd/m²
★ Viewing all angle
★ Operating temperature -20℃ ~ +70℃
★ OEM/ODM: Support
★ Warranty: 1 Year
Availability:
Inquire Add to Basket

Previous:
Next:

Contact Us

WhatsApp: +86 19864941790
 Email: domi@gredisplay.com
 WeChat: +86-13926514586
WhatsApp
WhatsApp
WeChat
WeChat
Product Description
Technical Parameter

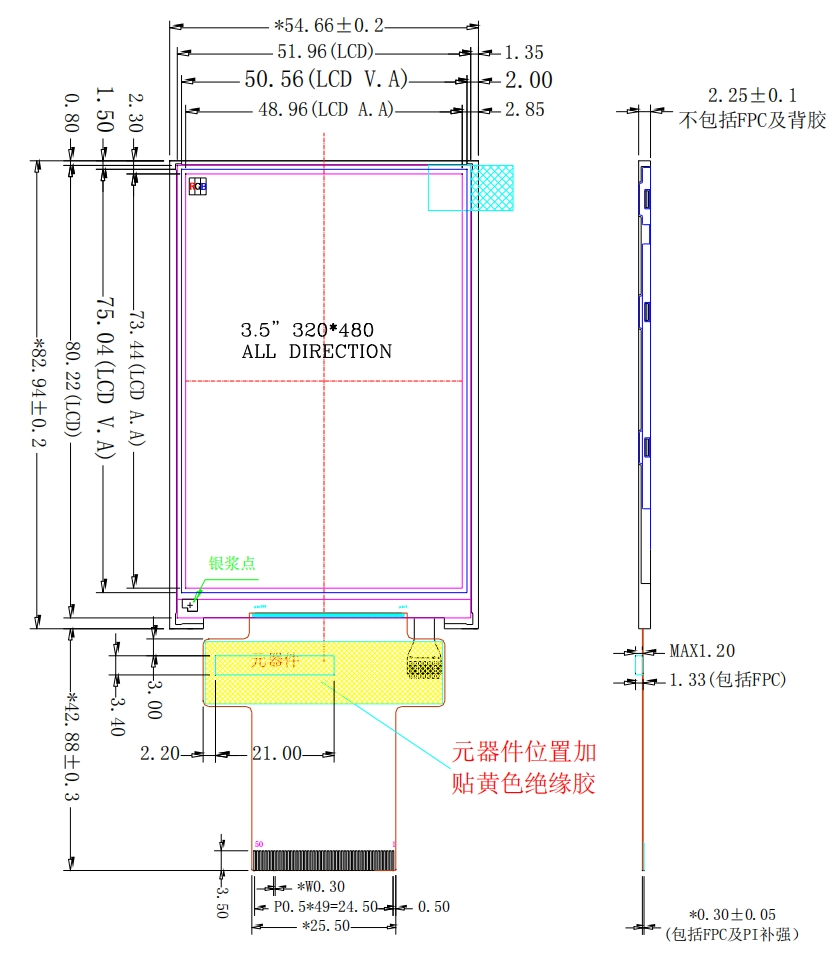

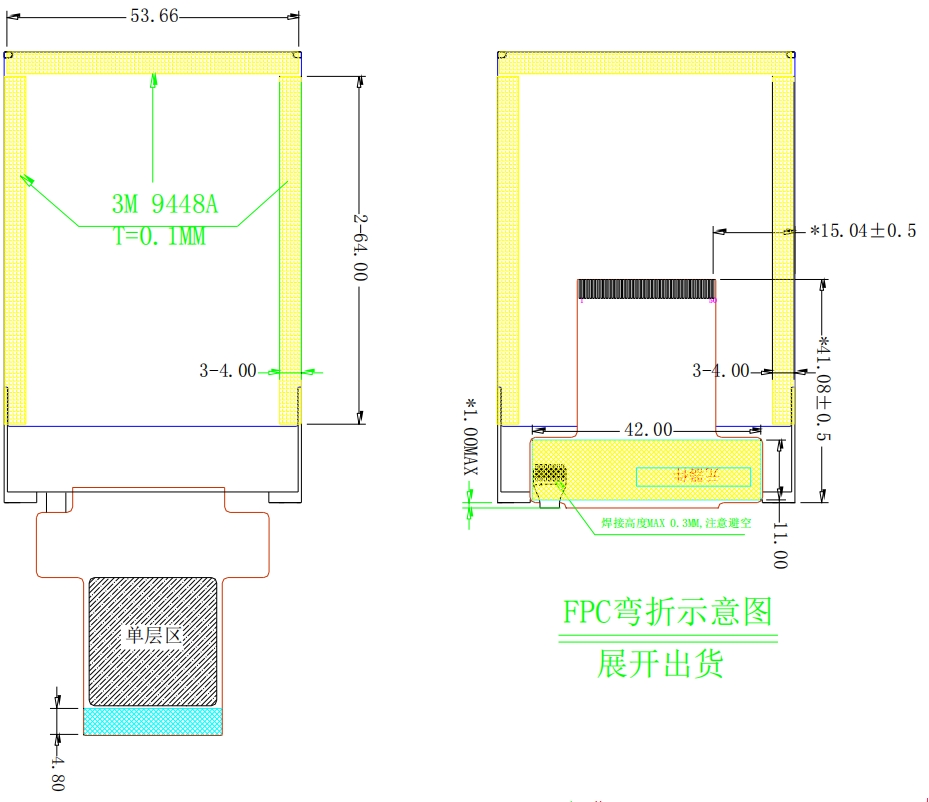

17021030802186531702103092769836



Technical Parameter

Product Name:

LCD Panel

Sizes：

1.8 to 10.1 inches

LCD Brand：

GreDisplay

Screen Type：

a-Si TFT-LCD

Ratio(H:V)：

16:9,16:10,4:3,5:4

Resolution:

Standard resolution

Brightness：

200-1000cd/m²

Color:

16.7M

Contrast Ratio:

500-1000:1

Response Time：

10-25 ms

Refresh Rate:

60Hz

View Angle:

Standard

Operating Temperature:

-30 ~ 70 °C

Storage Temperature:

-30 ~ 80 °C

Warranty:

One year

OEM/ODM:

Support
