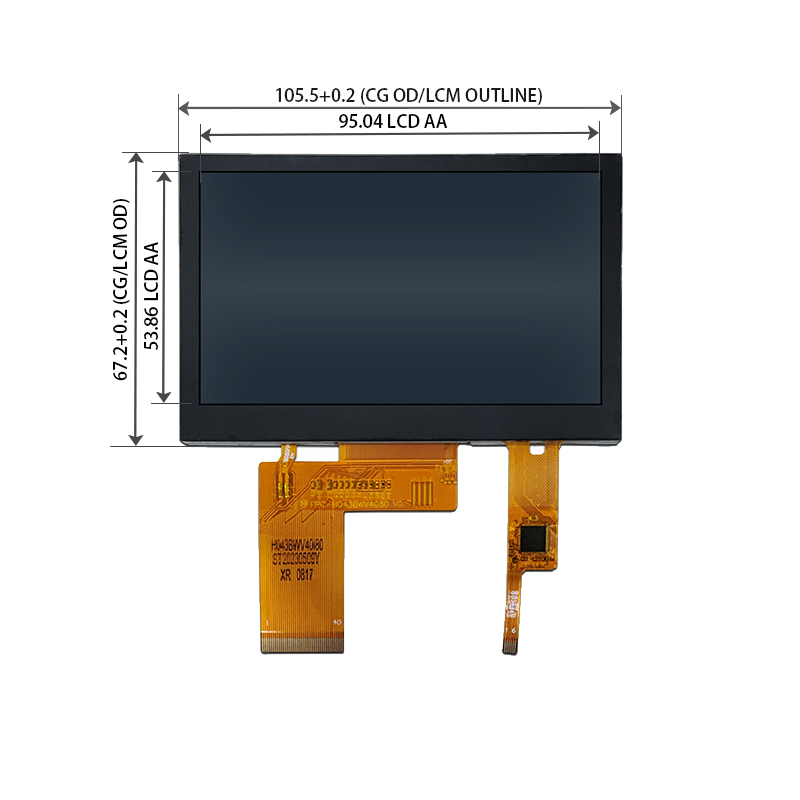

4.3-inch capacitive touch LCD screen 800×480 RGB interface TFT-LCD LCD screen assembly

★ Regular Size: 4.3 inch

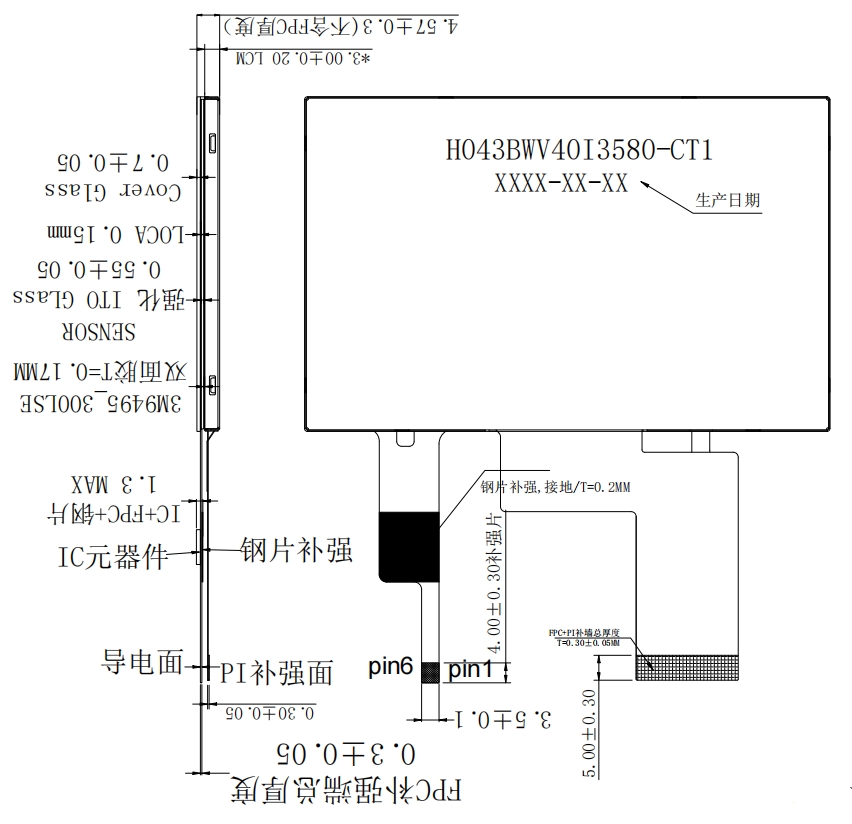

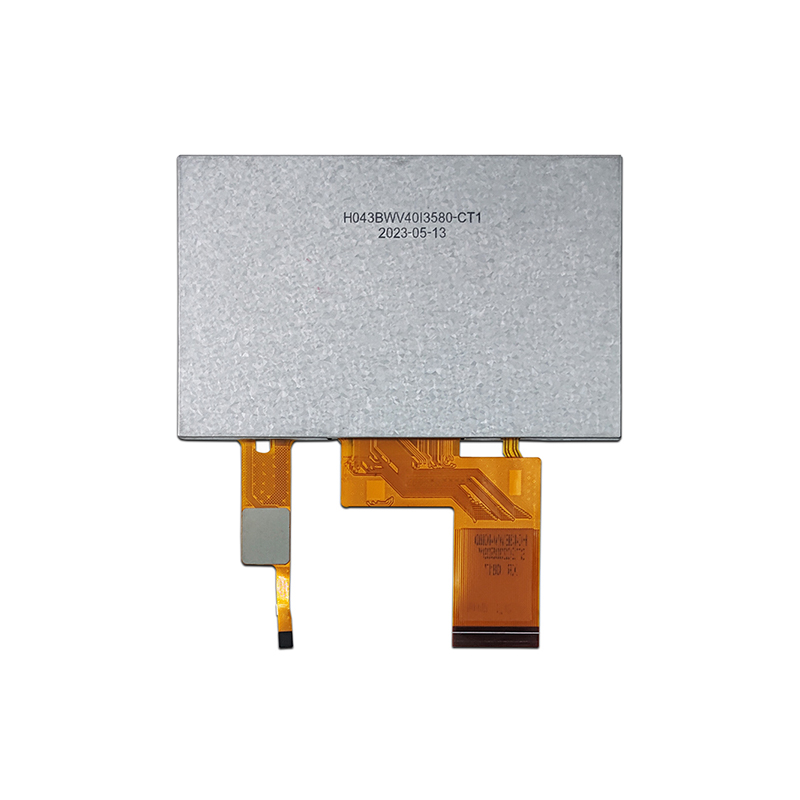

★ Model: H043BWV40I3580-CT1
★ Resolution: 800×480
★ Interface:  40pin RGB 24BIT

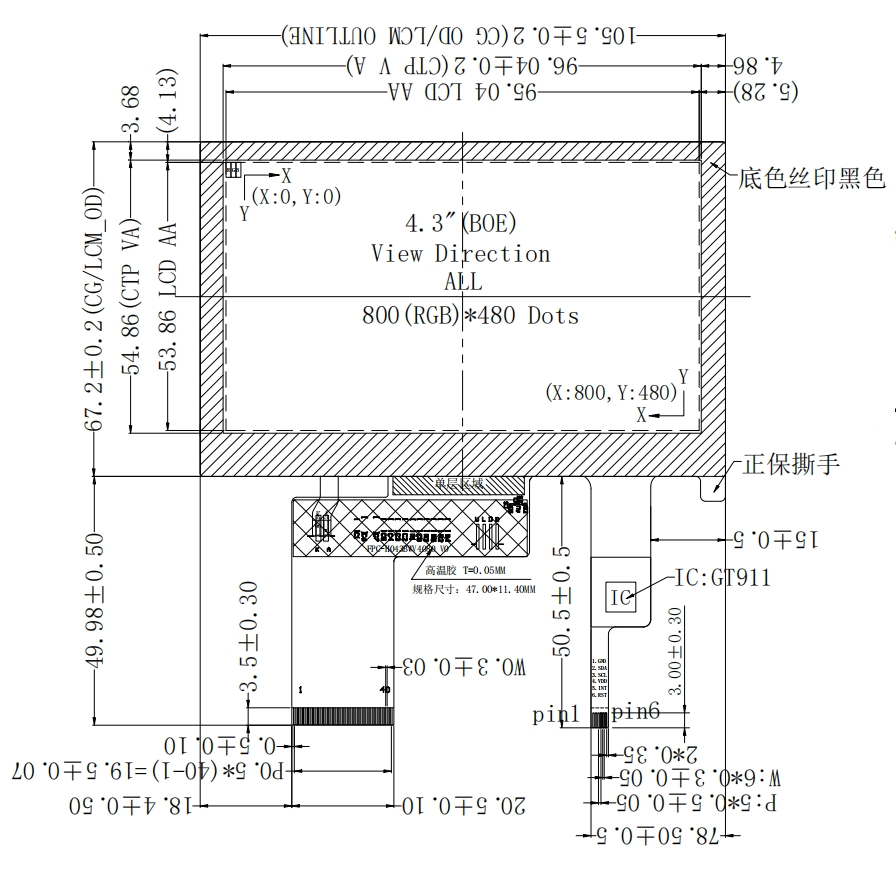

★ Dimensions size:  105.50(W)×67.20(H)×4.57(T)
★ Viewable size: 95.04(W) ×53.86(H) mm
★ Brightness:290 cd/m²
★ Viewing all angle
★ Operating temperature -20℃ ~ +70℃
★ OEM/ODM: Support
★ Warranty: 1 Year
