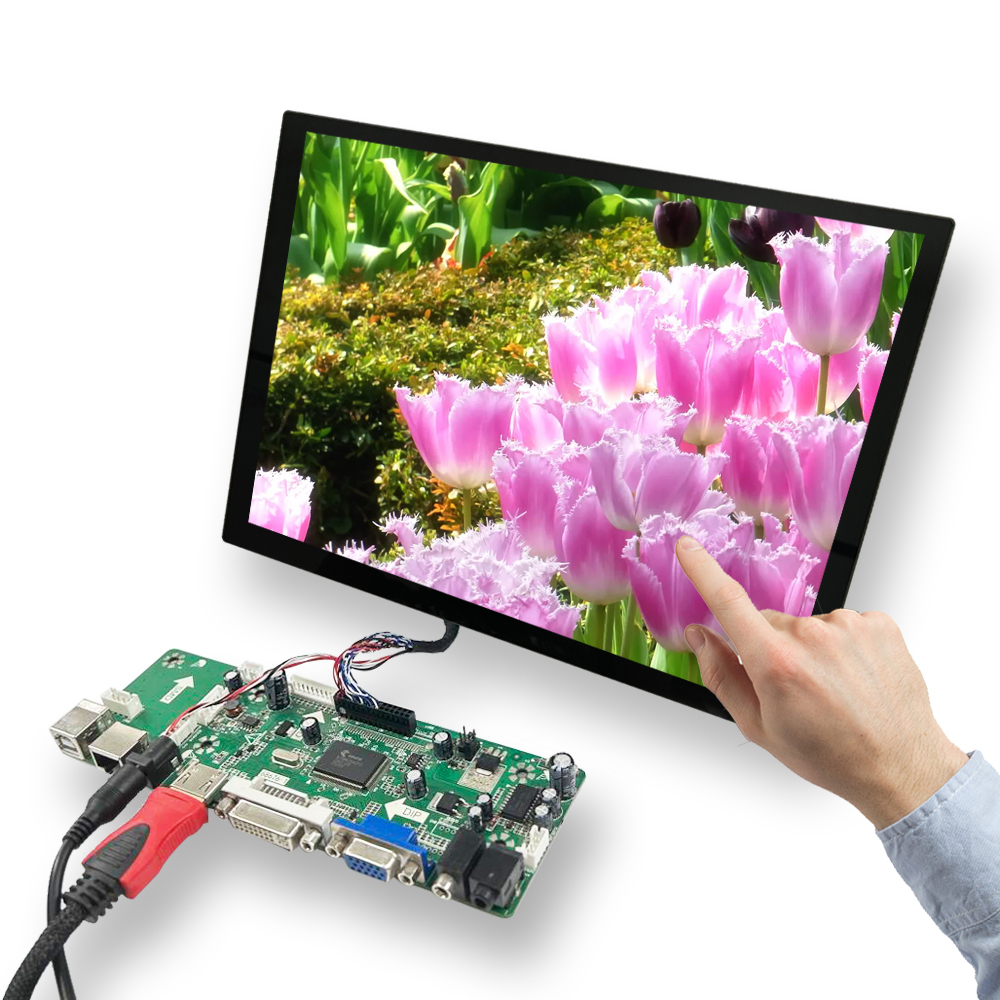

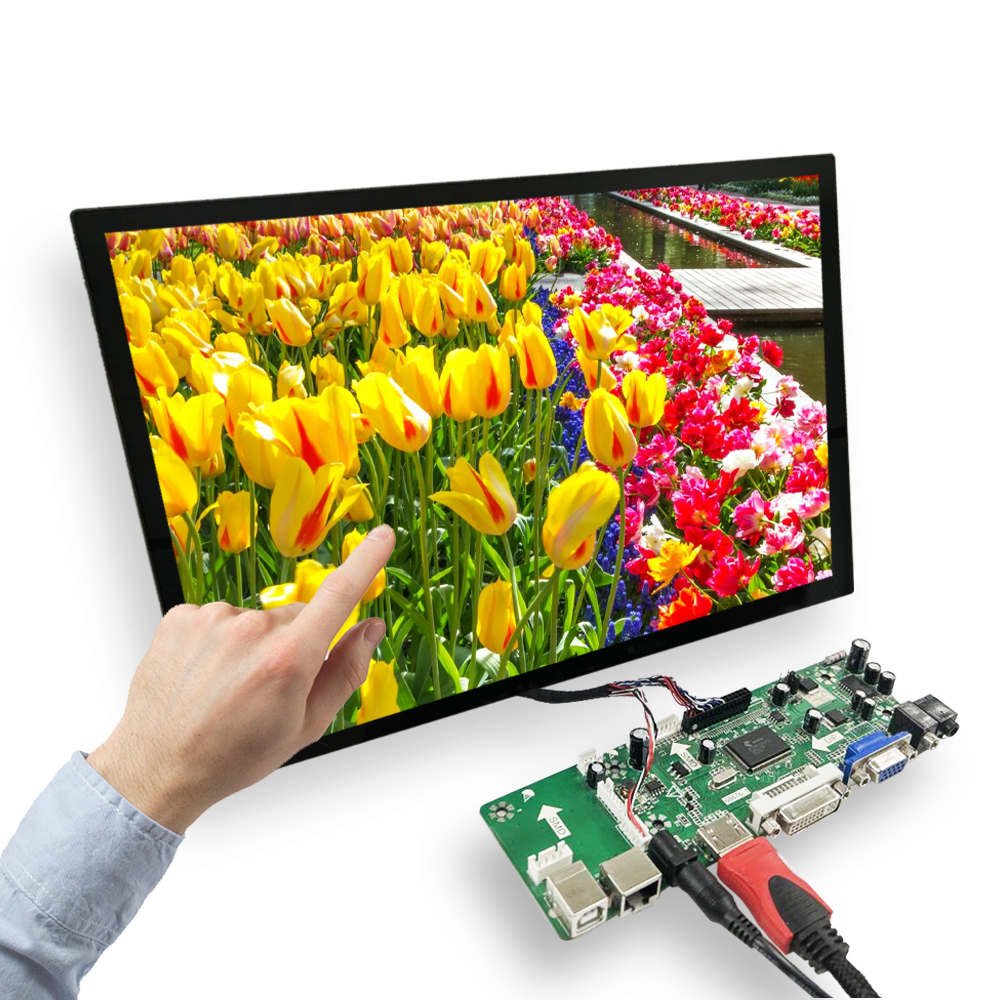

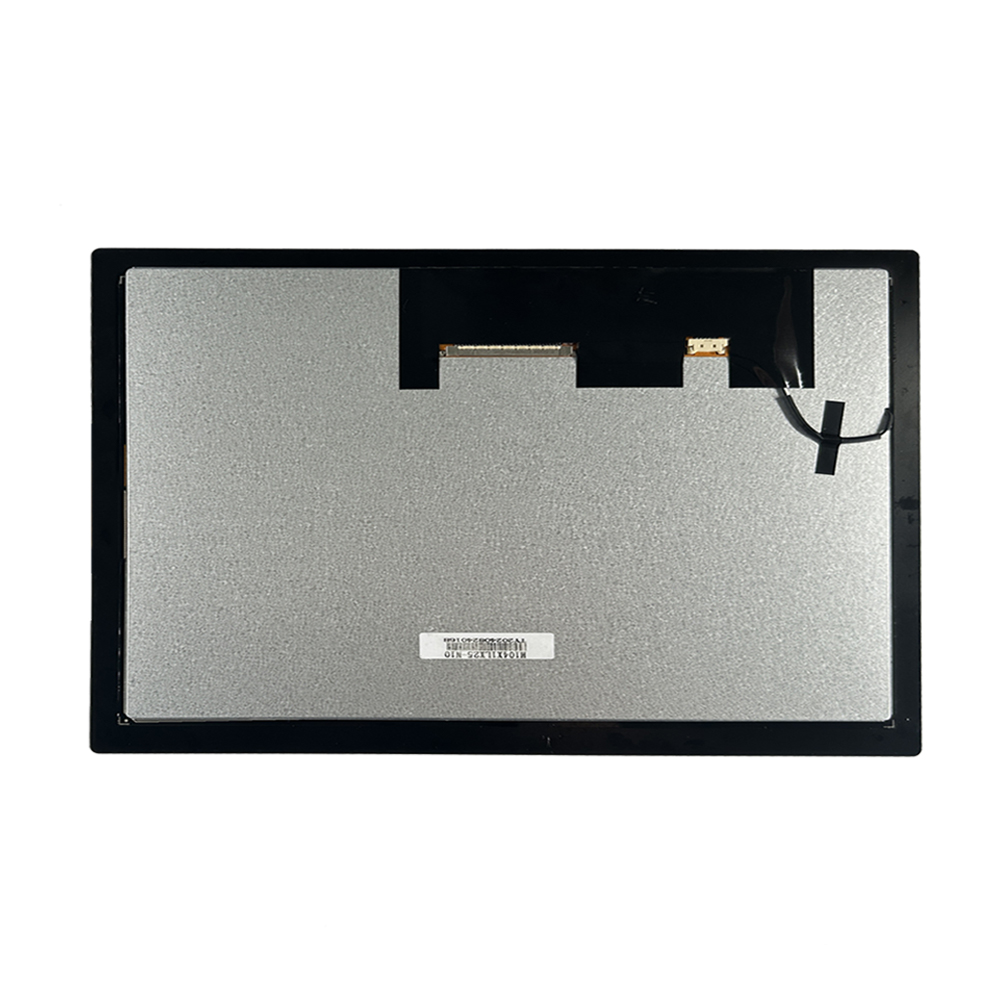

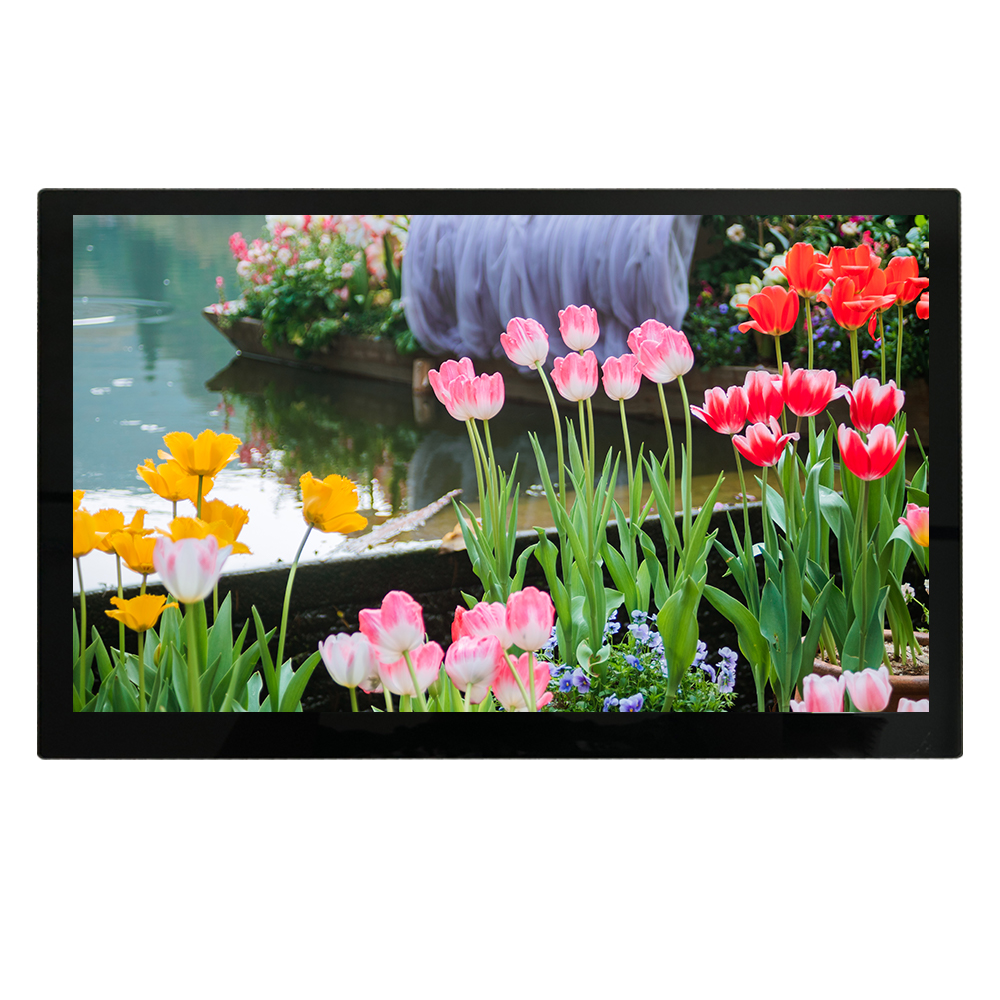

13.3" LCD Module With Capacitive Touch (PCAP)

★ Regular Size: 7 to 32 inches
★ Type: a-Si TFT-LCD
★ Brand: GreDisplay
★ Brightness: 250-1000cd/m²

★ Resolution：1024 x 600 / 1280 x 800 / 1920 x 1200

★ Interface：LVDS / eDP

★ Operating Temp.(℃)：-20 ~ 60

★ Accessories(optional): External wire,Power Cord, Power supply,Interior line, Video Board
★ OEM/ODM: Support
★Warranty: 1 Year

Availability:



Inquire Add to Basket

Contact Us

WhatsApp: +86 19864941790

Email: domi@gredisplay.com

WeChat: +86-13926514586

Offer

WeChat

Product Description

LCD Touch Display PCAP List

Specification Description

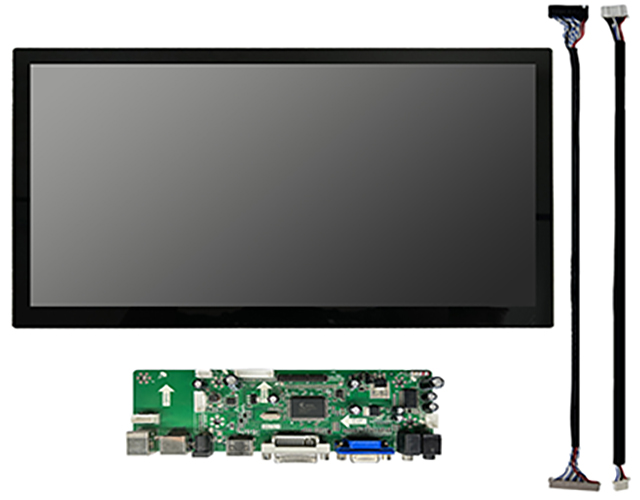

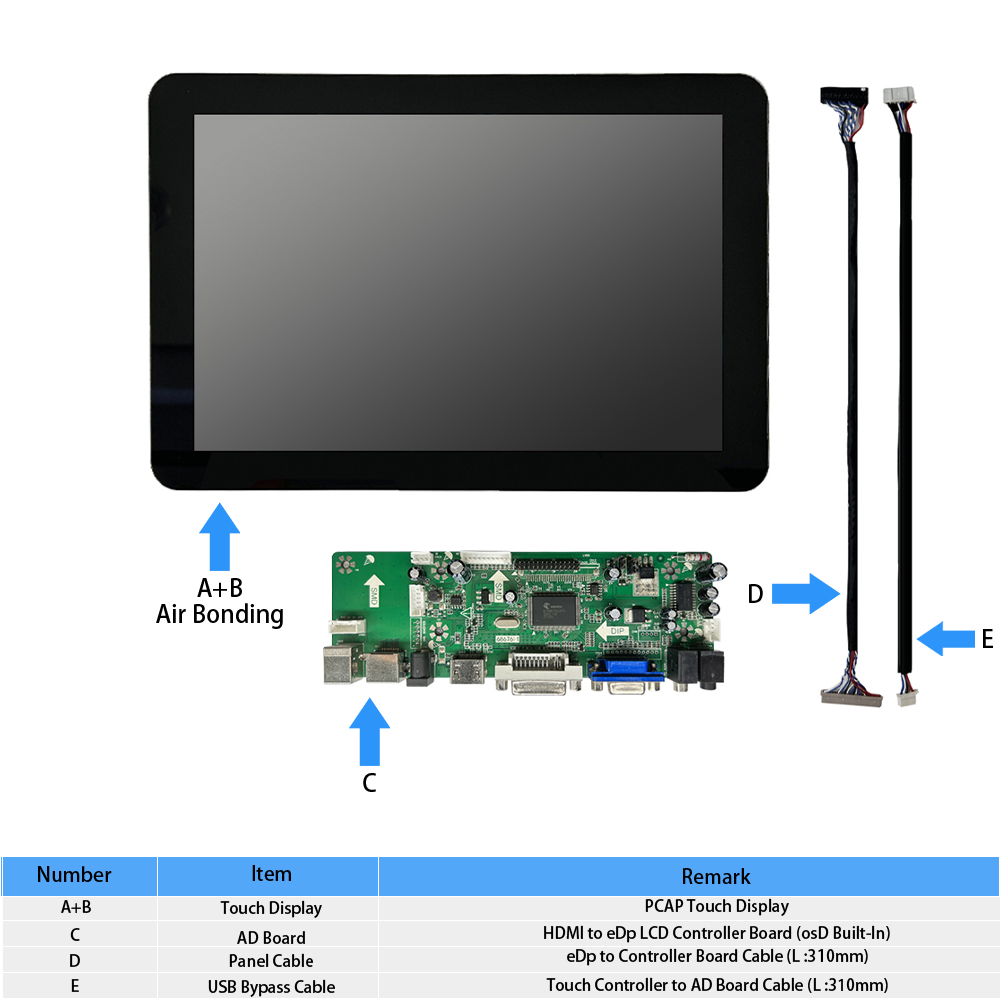

Accessories Show

Product Video

Product Overview

GreDisplay,an expert in industrial and commercial TFT LCD display solutions,was established in 2015, dedicated to the development of customized TFT LCD solutions and the expansion of the industrial LCD market,with advanced multi-screen display solutions and display control technologies.Our products are used in a wide range of commercial and industrial applications from single components to complete systems, including: digital signage,KMM,vending machines,information distribution platforms,medical equipment,test and measurement,military equipment,mobile displays and embedded applications and many other fields.

Product Features

♦ 13.3-inch LCD Screen: It adopts a 13.3-inch display module, presenting a clearer picture and more intuitive display content.

♦ Capacitive Touch: Capacitive touch operation is supported, with a more sensitive response, bringing a more comfortable user experience.

♦ Resolution: With a resolution of 1920*1080, it enables a more delicate picture and a more appealing display effect.

♦ IPS Wide Viewing Angle: By using IPS panel technology, it has a wider viewing angle, which can meet the viewing needs from different angles.

♦ Industrial Grade: Designed according to industrial-grade standards, it features stronger resistance to vibration, interference, dust, and high temperatures, and is suitable for various complex environments.

LCD Touch Display PCAP List

Part	10.1 inch~17 inch LCD Touch Display PCAP As Follows
LCD Display	Panel Size	10.1"	10.4"	12.1"	13.3"	15"	15.6"	17"
	Resolution	1024*800	1024*768	1280*800	1920*1080	1920*1080	1920*1080	1280*1024
	Brightness (cd/㎡)	400 nits	470 nits	400 nits	400 nits	450 nits	500 nits	350 nits
	Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	85/85/85/85	88/88/88/88	89/89/89/89	85/85/80/80
	B/L Life Time(Hr)	20K	50K	50K	30K	50K	50K	50K
	Interface Type	LVDS	LVDS	LVDS	eDP	LVDS	eDP	LVDS
	Backlight Driver	Built-in	Built-in	Built-in	Built-in	Built-in	Built-in	Built-in
Touch PCAP	Touch IC	WEIDA8752	WEIDA8752	WEIDA8752	WEIDA8752	WEIDA8752	exc8083	WEIDA8752
	Interface	USB/12C	USB/12C	USB/12C	USB/12C	USB/12C	USB/12C	USB/12C
	FPC Type	COB/COF	COB/COF	COB/COF	COB/COF	COB/COF	COB/COF	COB/COF
	Surface Treatment	Clear	Clear	Clear	Clear	Clear	Clear	Clear
	Transparency	≧ 85%	≧ 85%	≧ 85%	≧ 85%	≧ 85%	≧ 85%	≧ 85%
	Surface Hardness	≧ 6H	≧ 6H	≧ 6H	≧ 6H	≧ 6H	≧ 6H	≧ 6H
	Allow Touch Points	10 Points	10 Points	10 Points	10 Points	10 Points	10 Points	10 Points
	Structure (Glass Thickness)	G/G(3.0mm)	G/G(3.0mm)	G/G(3.0mm)	G/G(3.0mm)	G/G(3.0mm)	G/G(3.0mm)	G/G(3.0mm)
	Input Method	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus
	System	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11
	Active Area	217.96x136.60mm	213.20x160.40mm	248.00x186.50mm	294.40x166.00mm	305.00x229.01mm	343.54x192.83mm	338.92x271.34mm
	Outline Dimension	254.96x169.60mm	253.20x200.40mm	286.00x224.50mm	342.40x214.00mm	346.00x270.00mm	388.80x238.80mm	377.00x309.00mm
	Operationg	-20~60°	-20~60°	-20~60°	-20~60°	-20~70°	-20~60°	-20~60°
	Storage Temp	-30~70°	-30~70°	-30~70°	-30~70°	-30~70°	-30~70°	-30~70°
