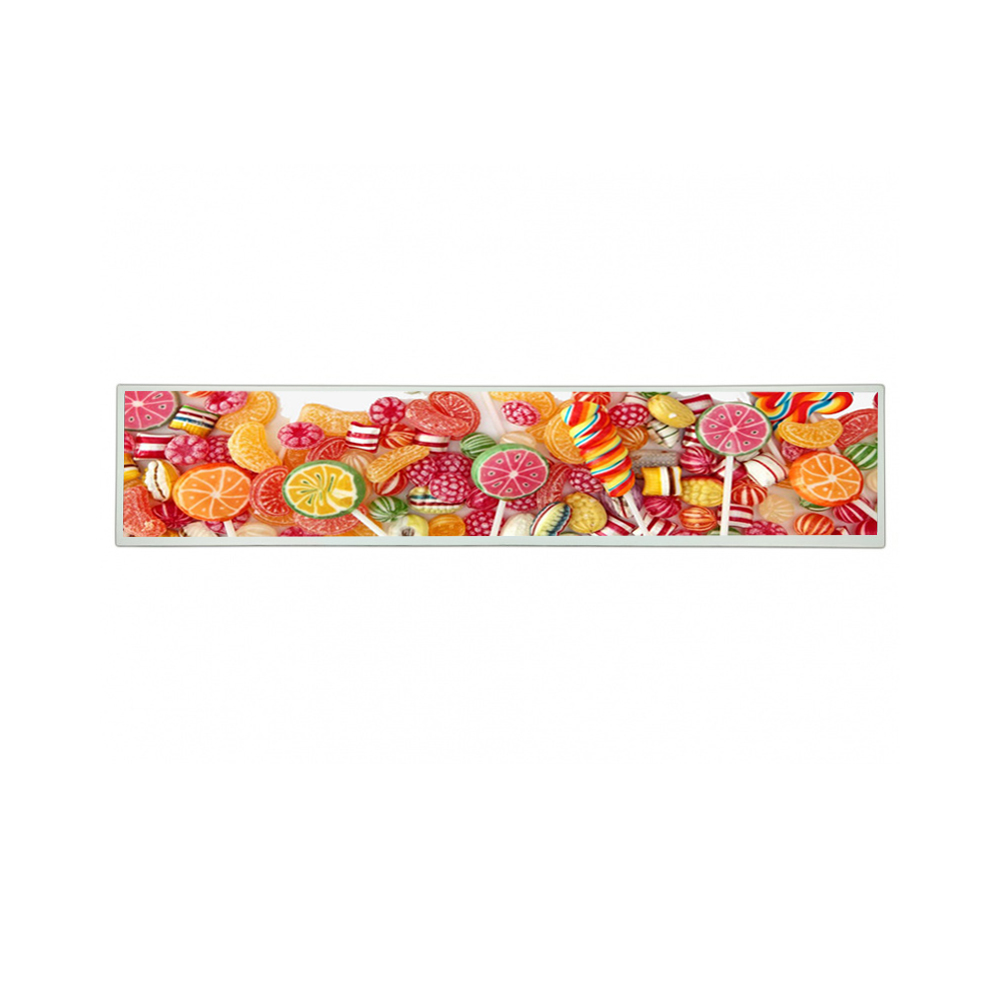

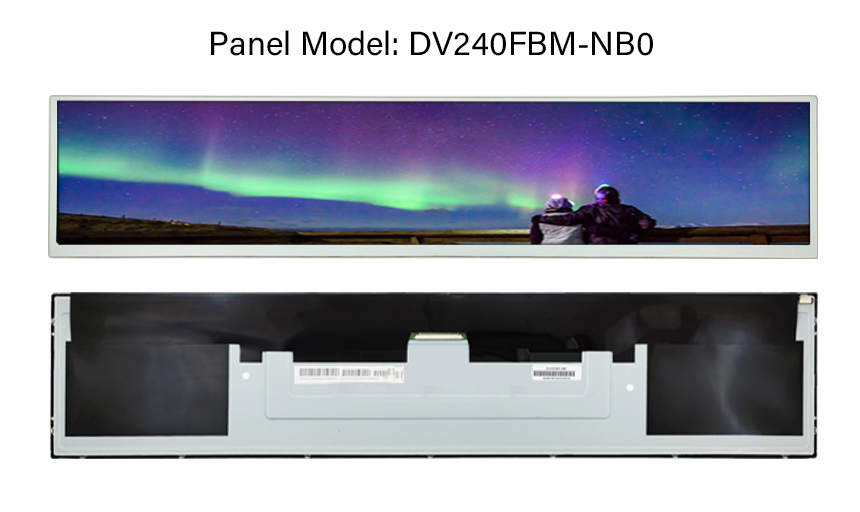

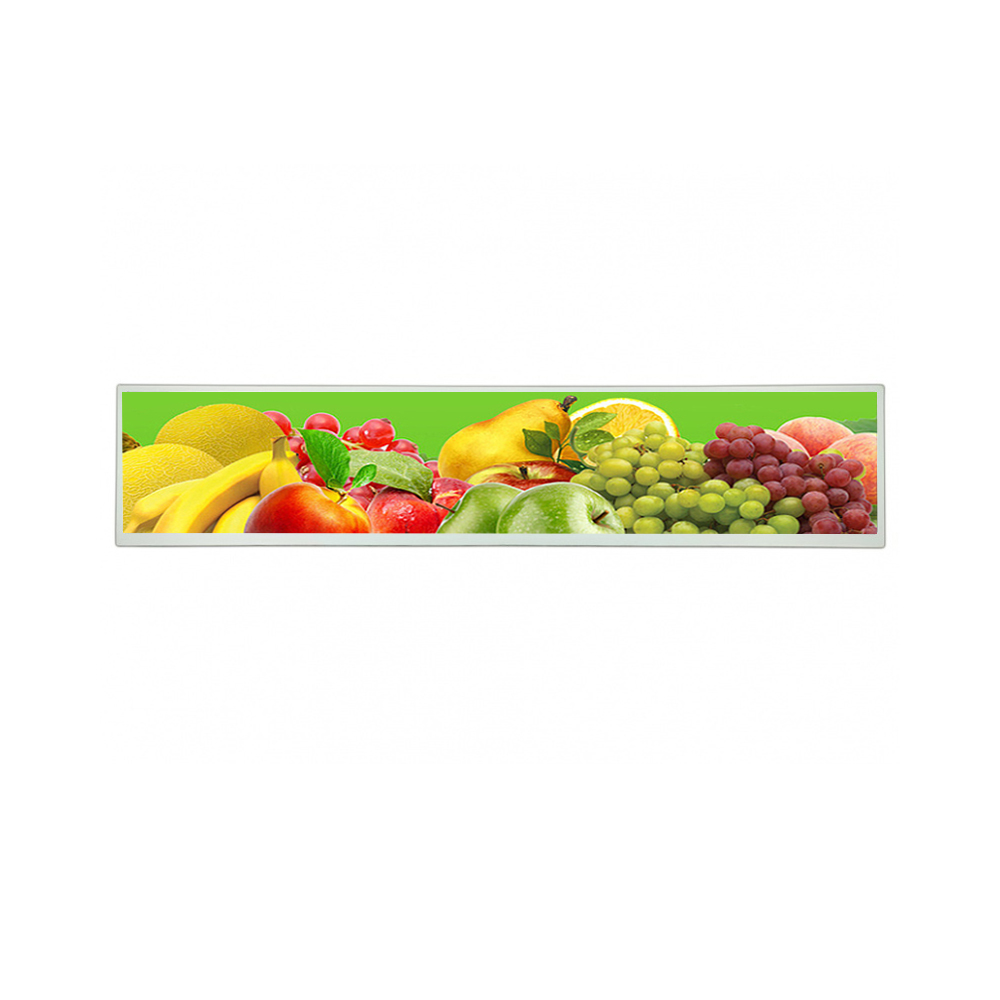

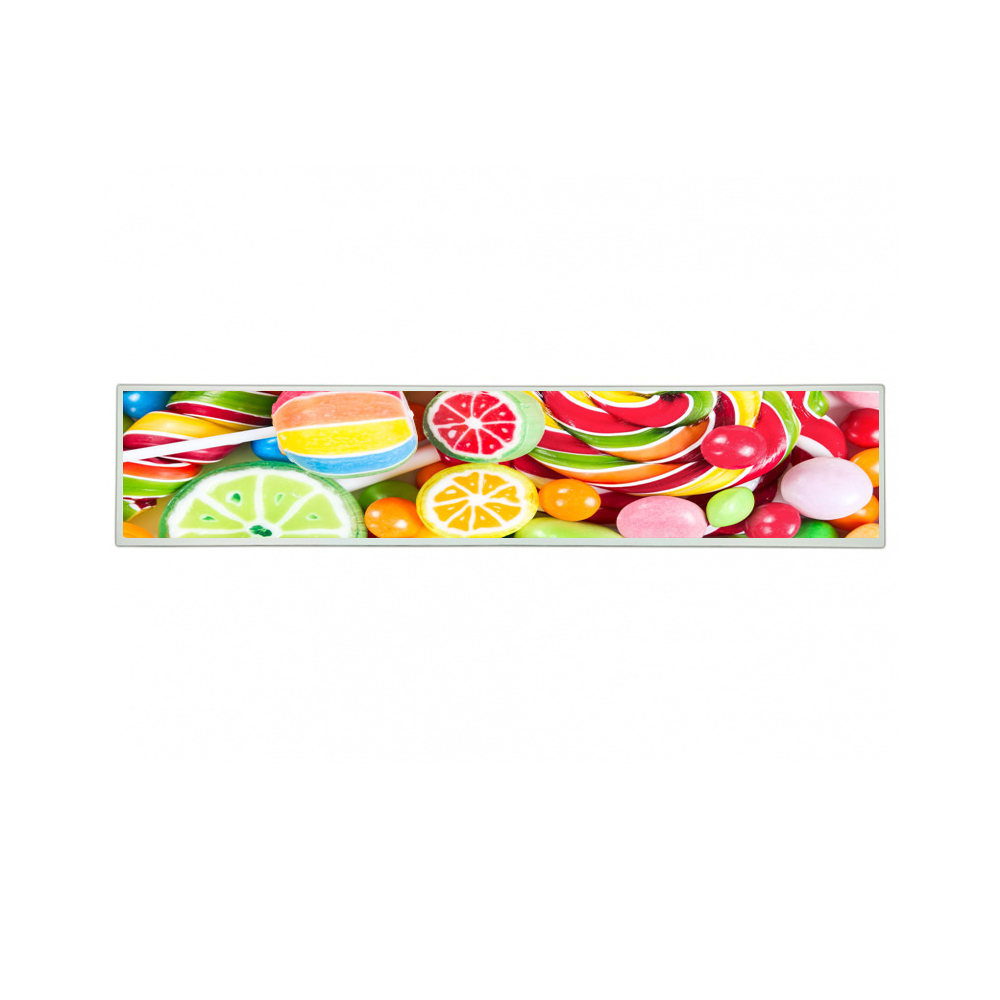

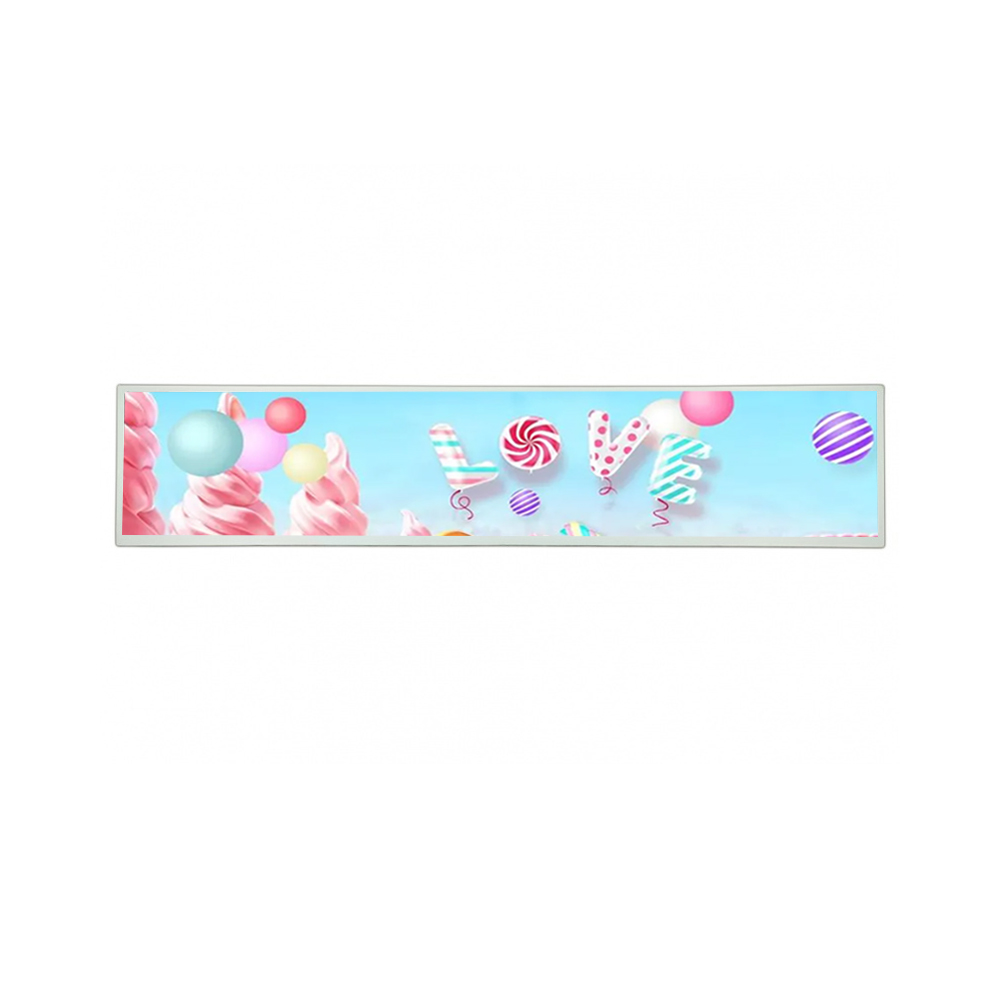

DV240FBM-NB0
BOE
Product OverviewGreDisplay,an expert in industrial and commercial TFT LCD display solutions,was established in 2015, dedicated to the development of customized TFT LCD solutions and the expansion of the industrial LCD market,with advanced multi-screen display solutions and display control technologies.Our products are used in a wide range of commercial and industrial applications from single components to complete systems, including: digital signage,KMM,vending machines,information distribution platforms,medical equipment,test and measurement,military equipment,mobile displays and embedded applications and many other fields. |  |
 | Product Description We provide BOE,AUO,LG,Chimei Innolux,TIANMA,Sharp and other international high-end A+ grade original industrial-grade LCD screens or assembled LCD screens,the size is mainly 3.5 inches to 65 inches,and also we provide customers with external wire like VGA,DVI,HDMI,DP,USB cable,power cord,power supply,interior line,video board, resistive touch screen,capacitive touch screen,infrared touch screen,industrial monitor, touch monitor and other supporting products or perfect LCD driver solutions. |
Product Features ♦ Provide original screen or assembled screen,quality assurance,the screen is no dust,no dots,no bright lines. ♦ The specifications,sizes are serialized and diversification,flexible use,easy maintenance and update. ♦ Good use characteristics,low driving voltage,flat,thin,low power consumption. ♦ High resolution,high color fidelity,high brightness and contrast,clear and delicate graphics. ♦ Can be used for industrial and commercial use,with long service life and wide application range. ♦ Good environmental protection characteristics,no radiation,no flicker,no damage to the health of users. |  |

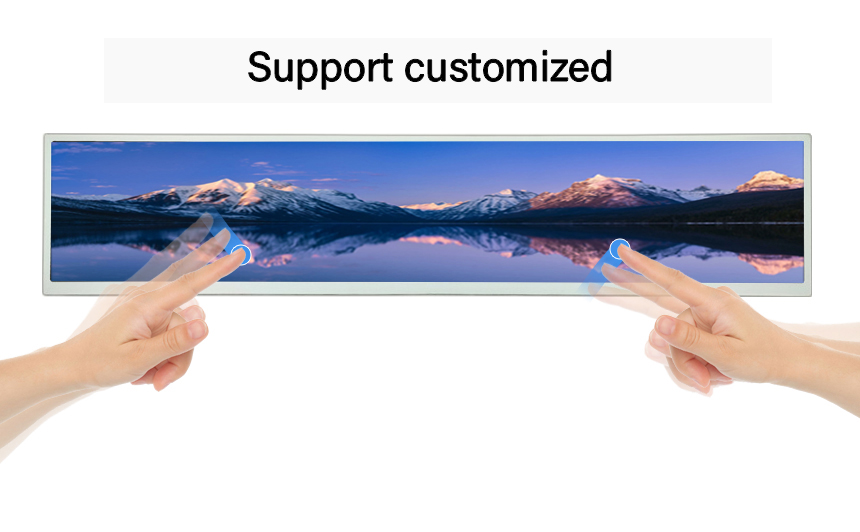

 | Customization Options ♦ LCD brand (BOE,AUO,LG,Samsung,Chimei Innolux,TIANMA,Sharp) ♦ LCD module sizes (3.5 to 65 inches) ♦ LCD brightness(230-1000 cd/m²) ♦ Accessories(External wire,Power Cord,Power supply,Interior line,Video Board) |
Specification and Download
| LCD Brand | Sizes | Model | Outline Size(H×V×D) | Active Area(H×V) | Contrast Ratio | Resolution | Brightness(cd/m²) | Data Download |
| BOE | 12.6" | 315.61 × 94.02 × 5.3 mm | 309.312×82.9665 mm | 1200 : 1 (Typ.) | 1920(RGB)×515 157PPI | 250 | ||
| BOE | 12.6" | NV126B5M-N42 | 315.61 × 94.02 × 5 mm | 309.312×82.9665mm | 1200 : 1 (Typ.) | 1920(RGB)×515 157PPI | 400 |  NV126B5M-N42.pdf |
| BOE | 14.1" | NV140XTM-N52 | 350.52×118.65×2.5 mm | 344.218×98.604 mm | 1200 : 1 (Typ.) | 3840(RGB)×1100 283PPI | 300 | |
| BOE | 19" | 491.5×109.4×13.3 mm | 476.64×89.37 mm | 1200 : 1 (Typ.) | 1920(RGB)×360 102PPI | 300 | DV190FBM-NB0.pdf | |
| BOE | 21" | DV210FBM-N00 | 542.4×54.7mm | 529.41×36.39mm | 1200 : 1 (Typ.) | 1920(RGB)×132 92PPI | 300 | DV210FBM-N00.pdf |
| BOE | 21.2" | 537.216×109.6mm | 529.416×99.26 mm | 1200 : 1 (Typ.) | 1920(RGB)×360 92PPI | 0 | DV212FBB-N10.pdf | |
| BOE | 23.2" | EV232ZZM-N10 | 598.38×56.897×11.08mm | 588.48(W)×42.297(H) mm | 900 : 1 (Typ.) | 1920(RGB)×360 92PPI | 500 | |

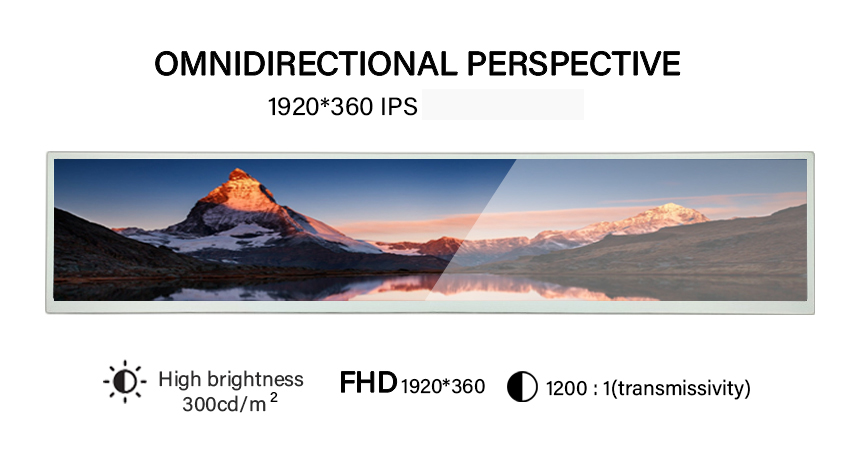

| BOE | 24" | 612.7(W)×132.1(H)×13.3(D) mm | 597.888(W)×112.104(H) mm | 1200 : 1 (Typ.) | 1920(RGB)×360 81PPI | 300 | DV240FBM-NB0.pdf | |
| BOE | 28" | 731.2 × 165.4 × 21 mm | 697.685(W)×130.752mm | 1200 : 1 (Typ.) | 1366(RGB)×256 49PPI | 800 | DV280FBM-NB1.pdf | |
| BOE | 29" | DV290FBM-N10 | 720.8×226.25×21.6mm | 705.6×198.45 mm | 1200 : 1 (Typ.) | 1280(RGB)×1024 96PPI | 750 | DV290FBM-N10.pdf |
| BOE | 36.6" | 960×174.35 ×17.4mm | 919.3×138.85 mm | 1200 : 1 (Typ.) | 1920(RGB)×290 53PPI | 700 | DV366FBM-N10.pdf | |
| BOE | 37" | 914.9×280.9 mm | 899.712×253.044mm | 1200 : 1 (Typ.) | 1920(RGB)×540 54PPI | 700 | DV370FBM-N10.pdf | |
| BOE | 47" | 1209×62.9 ×15.5 mm | 1196.16(W)×49.84(H) mm | 1000 : 1 (Typ.) | 3840(RGB)×160 81PPI | 500 | DV471FBM-N10.pdf | |
| BOE | 48" | 1217.85×248.18×30.1 mm | 1194.05×223.884mm | 1000 : 1 (Typ.) | 3840(RGB)×72081PPI | 1000 | DV480FBM-N01.pdf |
