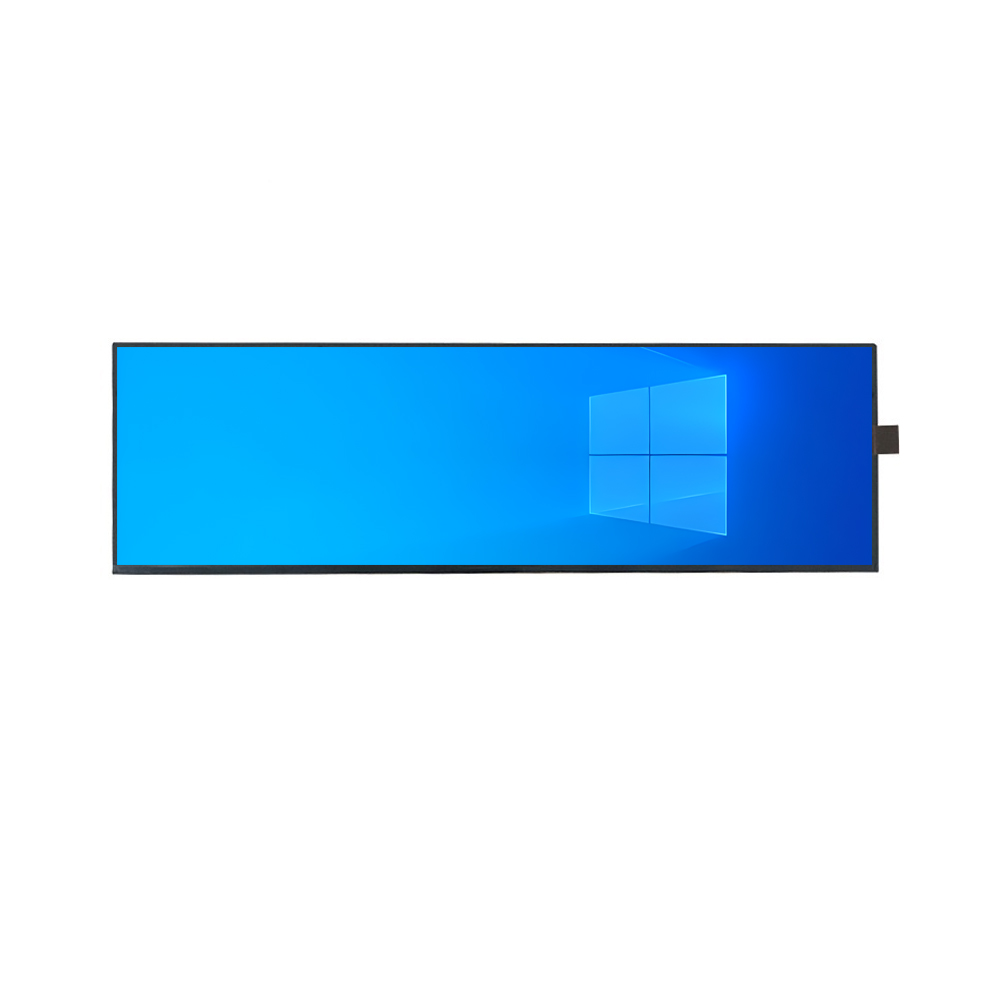

Stretched Bar LCD Screen-12.6 Inch NV126B5M-N41

★ Regular Size: 12.6 to 48 inches
★ Type ：a-Si TFT-LCD
★ Brand：BOE,AUO,LG,Chimei Innolux,TIANMA
★ Accessories(optional)：External wire,Power Cord, Power supply,Interior line,Video Board
★ Brightness：200-1000cd/m²
★ OEM/ODM: Support
★ Warranty: 1 Year

Availability:



Inquire Add to Basket

Model:
NV126B5M-N41
Brand:
BOE

Contact Us

WhatsApp: +86 19864941790

Email: domi@gredisplay.com

WeChat: +86-13926514586

Offer

WeChat

Product Description

Technical Parameter

Product Features

Specification and Download

Product Overview GreDisplay,an expert in industrial and commercial TFT LCD display solutions,was established in 2015, dedicated to the development of customized TFT LCD solutions and the expansion of the industrial LCD market,with advanced multi-screen display solutions and display control technologies.Our products are used in a wide range of commercial and industrial applications from single components to complete systems, including: digital signage,KMM,vending machines,information distribution platforms,medical equipment,test and measurement,military equipment,mobile displays and embedded applications and many other fields.
	Product Description We provide BOE,AUO,LG,Chimei Innolux,TIANMA,Sharp and other international high-end A+ grade original industrial-grade LCD screens or assembled LCD screens,the size is mainly 3.5 inches to 65 inches,and also we provide customers with external wire like VGA,DVI,HDMI,DP,USB cable,power cord,power supply,interior line,video board, resistive touch screen,capacitive touch screen,infrared touch screen,industrial monitor, touch monitor and other supporting products or perfect LCD driver solutions.
Product Features ♦ Provide original screen or assembled screen,quality assurance,the screen is no dust,no dots,no bright lines. ♦ The specifications,sizes are serialized and diversification,flexible use,easy maintenance and update. ♦ Good use characteristics,low driving voltage,flat,thin,low power consumption. ♦ High resolution,high color fidelity,high brightness and contrast,clear and delicate graphics. ♦ Can be used for industrial and commercial use,with long service life and wide application range. ♦ Good environmental protection characteristics,no radiation,no flicker,no damage to the health of users.
	Customization Options ♦ LCD brand (BOE,AUO,LG,Samsung,Chimei Innolux,TIANMA,Sharp) ♦ LCD module sizes (3.5 to 65 inches) ♦ LCD brightness(230-1000 cd/m²) ♦ Accessories(External wire,Power Cord,Power supply,Interior line,Video Board)

Technical Parameter

Product Name:	LCD Screen Module	Sizes：	12.6 to 48 inches
LCD Brand：	BOE,AUO,LG,Chimei Innolux,TIANMA	Screen Type：	a-Si TFT-LCD
Ratio(H:V)：	16:9,16:10,4:3,5:4	Resolution:	Standard resolution
Brightness：	230-1000cd/m²	Color:	16.7M
Contrast Ratio:	500-1000:1	Response Time：	10-25 ms
Refresh Rate:	60Hz	View Angle:	Standard
Operating Temperature:	-0 ~ 60 °C	Storage Temperature:	-20 ~ 60 °C
Warranty:	One year	OEM/ODM:	Support

Product Features

★The Stretched Bar LCD screen is a special-shaped LCD screen. Its distinctive feature is that the length of the screen is significantly longer than the width, and it is in the shape of a strip.

★From the appearance, it has a larger aspect ratio and can provide more vertical display space within a limited width. This kind of screen has applications in many scenarios. For example, on some electronic bus and subway stop signs, the long LCD screen can be used to scroll bus lines, vehicle arrival information and other content; on the shelf labels of shopping malls, it can clearly display prices, product information, etc.

★In terms of technical parameters, it has different resolutions like ordinary LCD screens. The high-resolution long LCD screen can display clearer images and text details. Its contrast, brightness and other parameters also vary depending on the quality and use of the product. Appropriate contrast and brightness can ensure visibility in different lighting environments.

★The product is suitable for: supermarket containers, car 4S stores, gas stations, catering and clothing stores, chain stores, banks, airport/station waiting rooms, high-speed rail/subway carriages, real estate marketing centers, exhibition halls, entertainment venues, hotels, large-scale comprehensive shopping malls, enterprises and institutions, etc., for the broadcasting and promotion of video, pictures and text content. Stores, supermarket containers, etc.

Specification and Download

LCD Brand Sizes Model Outline Size(H×V×D) Active Area(H×V) Contrast Ratio Resolution Brightness(cd/m²) Data Download BOE 12.6" NV126B5M-N41 315.61 × 94.02 × 5.3 mm 309.312×82.9665 mm 1200 : 1 (Typ.) 1920(RGB)×515 157PPI 250 NV126B5M-N41.pdf BOE 12.6" NV126B5M-N42 315.61 × 94.02 × 5 mm 309.312×82.9665mm 1200 : 1 (Typ.) 1920(RGB)×515 157PPI 400 NV126B5M-N42.pdf BOE 14.1" NV140XTM-N52 350.52×118.65×2.5 mm 344.218×98.604 mm 1200 : 1 (Typ.) 3840(RGB)×1100 283PPI 300 NV140XTM-N52.pdf BOE 19" DV190FBM-NB0 491.5×109.4×13.3 mm 476.64×89.37 mm 1200 : 1 (Typ.) 1920(RGB)×360 102PPI 300 DV190FBM-NB0.pdf BOE 21" DV210FBM-N00 542.4×54.7mm 529.41×36.39mm 1200 : 1 (Typ.) 1920(RGB)×132 92PPI 300 DV210FBM-N00.pdf BOE 21.2" DV212FBB-N10 537.216×109.6mm 529.416×99.26 mm 1200 : 1 (Typ.) 1920(RGB)×360 92PPI 0 DV212FBB-N10.pdf BOE 23.2" EV232ZZM-N10 598.38×56.897×11.08mm 588.48(W)×42.297(H) mm 900 : 1 (Typ.) 1920(RGB)×360 92PPI 500 EV232ZZM-N10.pdf BOE 24" DV240FBM-NB0 612.7(W)×132.1(H)×13.3(D) mm 597.888(W)×112.104(H) mm 1200 : 1 (Typ.) 1920(RGB)×360 81PPI 300 DV240FBM-NB0.pdf BOE 28" DV280FBM-NB0 731.2 × 165.4 × 21 mm 697.685(W)×130.752mm 1200 : 1 (Typ.) 1366(RGB)×256 49PPI 800 DV280FBM-NB1.pdf BOE 29" DV290FBM-N10 720.8×226.25×21.6mm 705.6×198.45 mm 1200 : 1 (Typ.) 1280(RGB)×1024 96PPI 750 DV290FBM-N10.pdf BOE 36.6" DV366FBM-N10 960×174.35 ×17.4mm 919.3×138.85 mm 1200 : 1 (Typ.) 1920(RGB)×290 53PPI 700 DV366FBM-N10.pdf BOE 37" DV370FBM-N10 914.9×280.9 mm 899.712×253.044mm 1200 : 1 (Typ.) 1920(RGB)×540 54PPI 700 DV370FBM-N10.pdf BOE 47" DV471FBM-N10 1209×62.9 ×15.5 mm 1196.16(W)×49.84(H) mm 1000 : 1 (Typ.) 3840(RGB)×160 81PPI 500 DV471FBM-N10.pdf BOE 48" DV480FBM-N01 1217.85×248.18×30.1 mm 1194.05×223.884mm 1000 : 1 (Typ.) 3840(RGB)×72081PPI 1000 DV480FBM-N01.pdf

LCD Brand	Sizes	Model	Outline Size(H×V×D)	Active Area(H×V)	Contrast Ratio	Resolution	Brightness(cd/m²)	Data Download

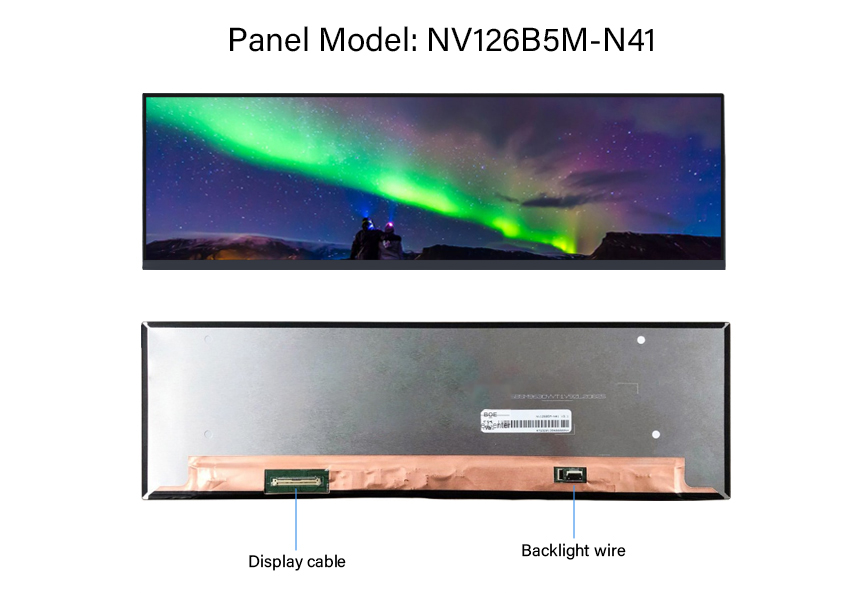

BOE	12.6"	NV126B5M-N41	315.61 × 94.02 × 5.3 mm	309.312×82.9665 mm	1200 : 1 (Typ.)	1920(RGB)×515 157PPI	250	NV126B5M-N41.pdf
BOE	12.6"	NV126B5M-N42	315.61 × 94.02 × 5 mm	309.312×82.9665mm	1200 : 1 (Typ.)	1920(RGB)×515 157PPI	400	NV126B5M-N42.pdf
BOE	14.1"	NV140XTM-N52	350.52×118.65×2.5 mm	344.218×98.604 mm	1200 : 1 (Typ.)	3840(RGB)×1100 283PPI	300	NV140XTM-N52.pdf
BOE	19"	DV190FBM-NB0	491.5×109.4×13.3 mm	476.64×89.37 mm	1200 : 1 (Typ.)	1920(RGB)×360 102PPI	300	DV190FBM-NB0.pdf
BOE	21"	DV210FBM-N00	542.4×54.7mm	529.41×36.39mm	1200 : 1 (Typ.)	1920(RGB)×132 92PPI	300	DV210FBM-N00.pdf
BOE	21.2"	DV212FBB-N10	537.216×109.6mm	529.416×99.26 mm	1200 : 1 (Typ.)	1920(RGB)×360 92PPI	0	DV212FBB-N10.pdf
BOE	23.2"	EV232ZZM-N10	598.38×56.897×11.08mm	588.48(W)×42.297(H) mm	900 : 1 (Typ.)	1920(RGB)×360 92PPI	500	EV232ZZM-N10.pdf
BOE	24"	DV240FBM-NB0	612.7(W)×132.1(H)×13.3(D) mm	597.888(W)×112.104(H) mm	1200 : 1 (Typ.)	1920(RGB)×360 81PPI	300	DV240FBM-NB0.pdf
BOE	28"	DV280FBM-NB0	731.2 × 165.4 × 21 mm	697.685(W)×130.752mm	1200 : 1 (Typ.)	1366(RGB)×256 49PPI	800	DV280FBM-NB1.pdf
BOE	29"	DV290FBM-N10	720.8×226.25×21.6mm	705.6×198.45 mm	1200 : 1 (Typ.)	1280(RGB)×1024 96PPI	750	DV290FBM-N10.pdf
BOE	36.6"	DV366FBM-N10	960×174.35 ×17.4mm	919.3×138.85 mm	1200 : 1 (Typ.)	1920(RGB)×290 53PPI	700	DV366FBM-N10.pdf
BOE	37"	DV370FBM-N10	914.9×280.9 mm	899.712×253.044mm	1200 : 1 (Typ.)	1920(RGB)×540 54PPI	700	DV370FBM-N10.pdf
BOE	47"	DV471FBM-N10	1209×62.9 ×15.5 mm	1196.16(W)×49.84(H) mm	1000 : 1 (Typ.)	3840(RGB)×160 81PPI	500	DV471FBM-N10.pdf
BOE	48"	DV480FBM-N01	1217.85×248.18×30.1 mm	1194.05×223.884mm	1000 : 1 (Typ.)	3840(RGB)×72081PPI	1000	DV480FBM-N01.pdf
