Visão geral do produtoGreDisplay,an expert in industrial and commercial TFT LCD display solutions,was established in 2015,dedicated to the development of customized TFT LCD solutions and the expansion of the industrial LCD market,with advanced multi-screen display solutions and display control technologies.Our products are used in a wide range of commercial and industrial applications from single components to complete systems,including: digital signage,KMM,vending machines,information distribution platforms,medical Equipamento, teste e medição, equipamentos militares, exibições móveis e aplicativos incorporados e muitos outros campos. |  |
 | Descrição do produto We provide BOE,AUO,LG,Chimei Innolux,TIANMA and other international high-end A+ grade original industrial-grade LCD screens or assembled LCD screens,the size is mainly 3.2 inch to 65 inch,and also we provide customers with external wire like VGA,DVI,HDMI,DP,USB cable,power cord,power supply,interior line,video board, resistive touch screen,capacitive touch screen,infrared touch tela, monitor industrial, monitor de toque e outros produtos de suporte ou soluções perfeitas de driver LCD. |
Recursos do produto ♦ Forneça tela original ou tela montada, garantia de qualidade, a tela não é poeira, sem pontos, sem linhas brilhantes. ♦ As especificações, tamanhos são serializadas e diversificação, uso flexível, fácil manutenção e atualização. ♦ Boas características de uso, baixa tensão de acionamento, consumo plano, fino e de baixa potência. ♦ Alta resolução, alta fidelidade de cor, alto brilho e contraste, gráficos claros e delicados. ♦ Pode ser usado para uso industrial e comercial, com vida útil longa e ampla gama de aplicativos. ♦ Boas características de proteção ambiental, sem radiação, sem cintilação, sem danos à saúde dos usuários. |  |
 | Opções de personalização ♦ Brand LCD (BoE, Auo, LG, Samsung, Chimei Innolux, Tianma) ♦ Tamanhos do módulo LCD (3,2 a 65 polegadas) ♦ Brilho LCD (200-1000 cd/m²) ♦ Acessórios (fio externo, cabo de alimentação, fonte de alimentação, linha interna, placa de vídeo) |
Acessórios mostram
Especificação e download
| Marca LCD | Tamanhos | Modelo | Tamanho do esboço (H × V × D) | Visualizar área (H × V) | Taxa de contraste | Resolução | Brilho (CD/M⊃2;) | Download de dados |
| Boe | 10.1 ' | EV101WXM-N10 | 228.6x149.2x6mm | 216.96x135.6mm | 900: 1 | 1280 (RGB) x800 149ppi | 400 |  EV101WXM-N10.PDF |
| AUO | 10.1 ' | G101EVN01.0 | 229.46x149.2x4.96mm | 216.96x135.6mm | 1300: 1 | 1280 (RGB) x800 149ppi | 300 | G101EVN01.0.PDF |
| Innolux | 10.1 ' | G101ICE-L01 | 230.7x152.55x7mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 500 | G101ICE-L01.PDF |

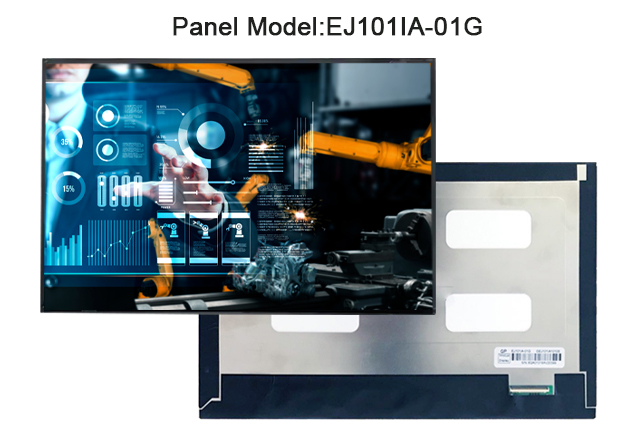

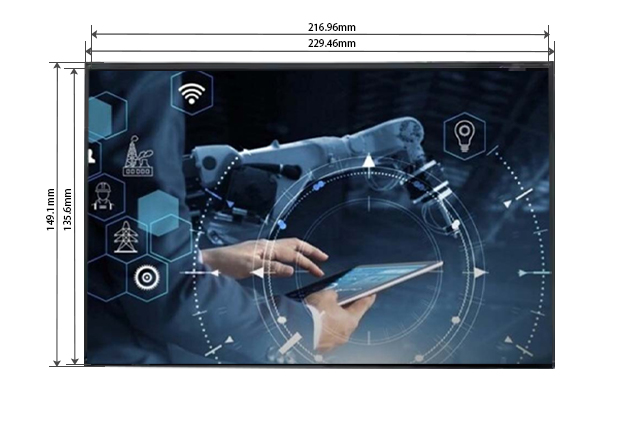

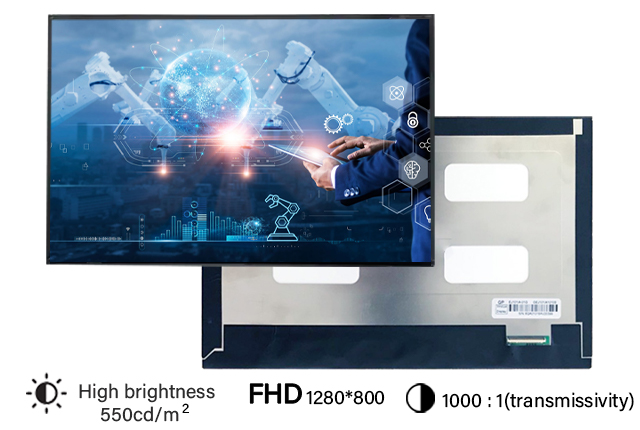

| AUO | 10.1 ' | EJ101ia-01G | 229.46x149.1x4.66mm | 216.96x800mm | 1000: 1 | 1280 (RGB) x480 149ppi | 550 | Ej101ia-01g.pdf |
| Boe | 10.1 ' | GV101WXM-N85 | 228.2x148.85x4.9mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 430 | GV101WXM-N85.PDF |
| AUO | 10.1 ' | G101EVN03.1 | 227.69x148.31x7.75mm | 216.96x135.6mm | 1300: 1 | 800 (RGB) x480 134ppi | 1000 | G101EVN03.1.PDF |
| AUO | 10.1 ' | G101EVN01.3 | 227.91x148x8.34mm | 216.96x135.6mm | 1300: 1 | 1280 (RGB) x800 149ppi | 500 | G101EVN01.3.pdf |
| Boe | 10.1 ' | EV101WXM-N80 | 233.2x152.9x10.4mm | 216.96x135.6mm | 900: 1 | 1280 (RGB) x800 149ppi | 400 | EV101WXM-N80.PDF |
| AUO | 10.1 ' | G101UAN01.0 | 227.72x147.8x5.35mm | 216.81x135.5mm | 800: 1 | 1920 (RGB) × 1200 224ppi | 380 | G101UAN01.0.PDF |
| AUO | 10.1 ' | G101STN01.0 | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 500 | G101STN01.0.PDF |
| AUO | 10.1 ' | G101EAN02.1 | 227.72x147.8x4.8mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) × 800 149ppi | 400 | G101EAN02.1.pdf |
| Boe | 10.1 ' | GV101WXM-N81 | 228.3x149.05x2.6mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 300 | GV101WXM-N81.PDF |
| Tianma | 10.1 ' | TM101JDHG30-00 | 231.22x150.6x6.6mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 500 | Tm101jdhg30.pdf |
| AUO | 10.1 ' | G101STN01.2 | 235x143x5.5mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) × 600 117ppi | 350 | G101STN01.2.pdf |
| Innolux | 10.1 ' | NJ101ia-01S | 229,46 × 149,1 × 7,7 mm | 216,96 × 135,6mm | 1000: 1 | 1280 (RGB) X800 149 PPI | 650 | NJ101ia-01.pdf |
| Boe | 10.1 ' | BP101WX1-206 | 228.6x149.2x4.59mm | 216.96x135.6mm | 600: 1 | 1280 (RGB) x800 149ppi | 330 | BP101WX1-206.PDF |
| Tianma | 10.1 ' | M101JDHP01-00 | 229.46x149.1x4.6mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) X800 149 PPI | 400 | TM101JDHP01-00.PDF |
| AUO | 10.1 ' | G101EAN01.0 | 150.3x232.4x4.8mm | 135.36x216.57mm | 1000: 1 | 800 (RGB) X1280 150 PPI | 350 | G101ean01.0.pdf |
| AUO | 10.1 ' | G101ICE-LH1 | 230.7x152.55x7mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) X800 149 PPI | 500 | G101ICE-LH1.PDF |
| Ivo | 10.1 ' | M101NWWB R3 | 229.46x149.1x4.56mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 350 | M101NWWB_R3.PDF |
| AUO | 10.1 ' | G101STN01.4 | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 350 | G101STN01.4.pdf |
| Boe | 10.1 ' | EV101WUM-N20 | 228.3x149.05x2.8mm | 216.8x135.5mm | 900: 1 | 1920 (RGB) x1200 224ppi | 470 | EV101WUM-N20.PDF |
| Innolux | 10.1 ' | N101ICG-L11 | 227.42x147.69x4.85mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 350 | N101icg-l11.pdf |
| Boe | 10.1 ' | GV101WXM-N80 | 228.2x148.85x4.9mm | 216.96x135.6mm | 1300: 1 | 1280 (RGB) x800 149ppi | 500 | GV101WXM-N80-8GP0.PDF |
| Innolux | 10.1 ' | DJ101ia-07A | 238.6x148x9.7mm | 223.68x125.82mm | 1000: 1 | 1280 (RGB) x720 145ppi | 750 | Dj101ia-07a.pdf |
| AUO | 10.1 ' | G101EAN02.2 | 227.91x148x7.75mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 500 | G101EAN02.2.pdf |
| AUO | 10.1 ' | G101STN01.6 | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 250 | G101STN01.6.PDF |
| Innolux | 10.1 ' | EE101ia-01D | 223.95x144.24x1.06mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 0 | EE101ia-01D.PDF |
| AUO | 10.1 ' | A101VW01 V3 | 235x145.9x5.59mm | 219.6x131.76mm | 500: 1 | 800 (RGB) x480 92ppi | 300 | A101VW01_V3.PDF |
| Tianma | 10.1 ' | TM101DDHG01-00 | 235x143x5.4mm | 222.72x125.28mm | 800: 1 | 1024 (RGB) x600 117ppi | 450 | Tm101ddhg01.pdf |
| Ivo | 10.1 ' | M101GWWF R0 | 229.46x149.1x4.56mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 350 | M101GWWF_R0.PDF |
| AUO | 10.1 ' | G101STN01.A | 235x143x6.64mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 300 | G101STN01.A.PDF |
| Tianma | 10.1 ' | TM101JDHG33-00 | 229.8x149x9.6mm | 216.96x135.6mm | 700: 1 | 1280 (RGB) x800 149ppi | 900 |  TM101JDHG33.pdf |
| Ivo | 10.1 ' | M101NWT2 R1 | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 200 | M101NWT2_R1.PDF |
| Ivo | 10.1 ' | M101GWN9 R0 | 244x143x12.9mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 500 | M101GWWF_R0.PDF |
| AUO | 10.1 ' | G101STN01.D | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 450 | G101STN01.D.PDF |
| Ivo | 10.1 ' | M101GWN9 R2 | 235x143x8.04mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 350 | M101GWN9_R2.PDF |
| Boe | 10.1 ' | NV101WXM-N01 | 228.3x149.05x4.7mm | 216.96x135.6mm | 800: 1 | 1280 (RGB) x800 149ppi | 400 | Nv101wxm-n01.pdf |
| AUO | 10.1 ' | G101QAN01.1 | 142.96x228.04x4.05mm | 135.36x216.57mm | 1000: 1 | 1600 (RGB) x2560 300ppi | 400 | G101QAN01.1.pdf |
| AUO | 10.1 ' | G101UAN02.0 | 229.4x150.05x5.05mm | 216.81x135.5mm | 800: 1 | 1920 (RGB) x1200 300ppi | 800 | G101UAN02.0.PDF |
| AUO | 10.1 ' | G101STN01.C | 235x143x5.2mm | 222.72x125.28mm | 500: 1 | 1024 (RGB) x600 117ppi | 500 | G101STN01.C.PDF |
| AUO | 10.1 ' | G101EVN01.1 | 229.46x149.2x6.21mm | 216.96x135.6mm | 1300: 1 | 1280 (RGB) x800 149ppi | 300 | G101EVN01.1.PDF |
| AUO | 10.1 ' | G101EVN01.2 | 227.91x148x8.34mm | 216.96x135.6mm | 1300: 1 | 1280 (RGB) x800 149ppi | 500 | G101EVN01.2.pdf |
| Boe | 10.1 ' | EV101WXM-N81 | 233.2x152.9x10.4mm | 216.96x135.6mm | 900: 1 | 1280 (RGB) x800 149ppi | 500 | EV101WXM-N81.PDF |
