Hdmi Industrial Touch Monitorr -7 Inches

Share to:

Hdmi Industrial Touch Monitorr -7 Inches

★ Display Type: Active Matrix TFT LCD,LED Backlight
★ Touch Type: PCAP,10 Points Touch
★ Water-proof/Dust-proof: IP65(Front)
★ Explosion-proof: IK08(Front)
★ Interface: VGA,DVI,HDMI,DP MIC,AUDIO(optional)
★ Touch Systems: Windows,Android,Linux
★ Certificates: RoHS,FCC,CE,CB,HDMI Testing

★ Warranty: 1 Year

Availability:



Inquire Add to Basket

Contact Us

WhatsApp: +86 19864941790

Email: domi@gredisplay.com

WeChat: +86-13926514586

Offer

WeChat

Product Description

Technical Parameter

Application Field

Specification and Download

Product Video

Product Description

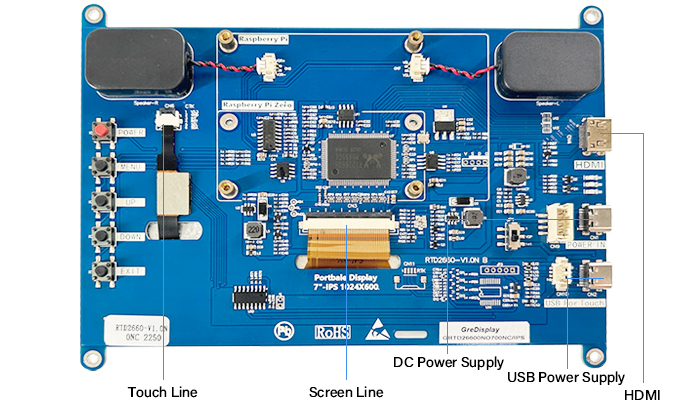

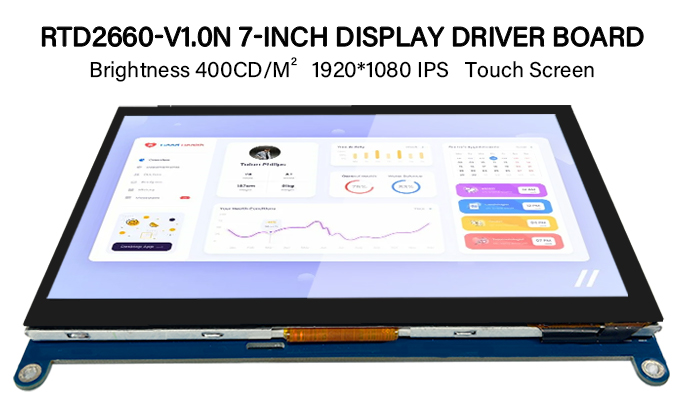

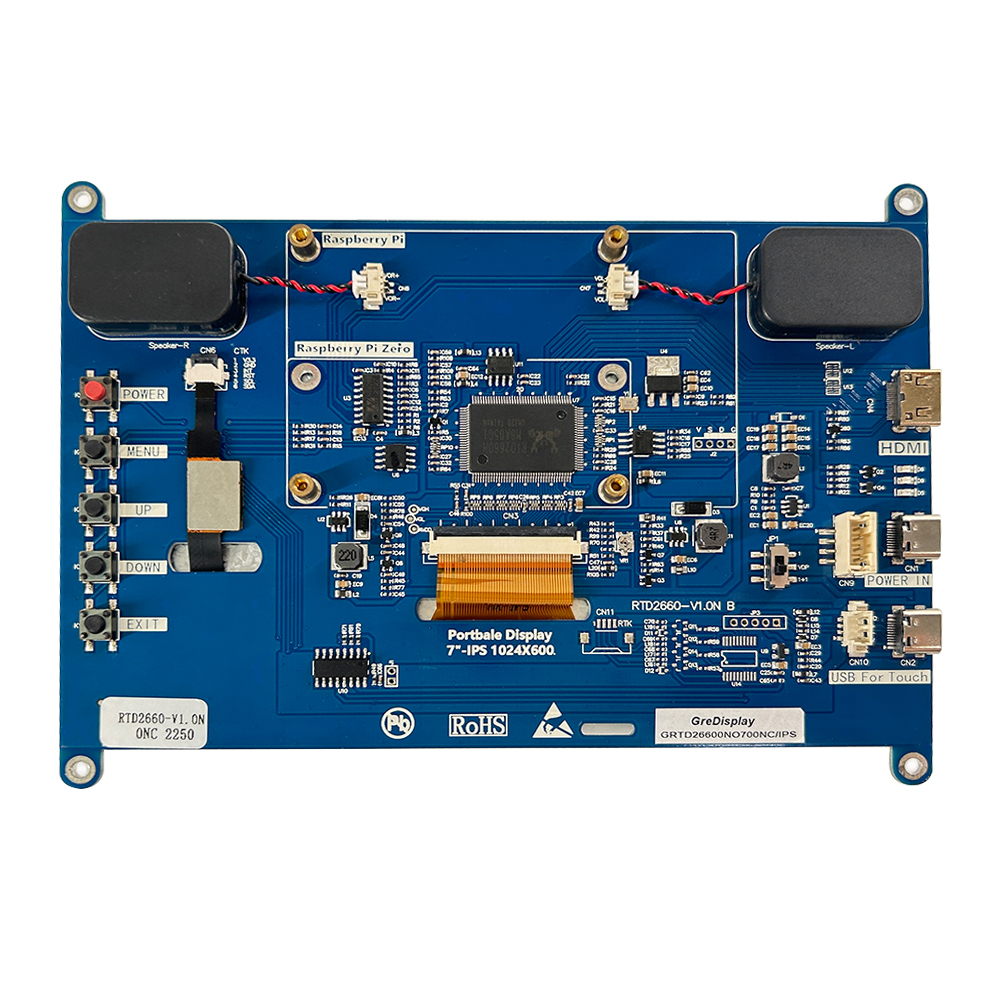

GRRTD2660-V1.0N is a 7.0inch LCD display driver board; supports HDMI input; supports I2S digital audio signal input and speaker output; Support 4-wireresistive touch panel or 6-wire capacitive touch panel.（ This function can onlybe selected from two .Designed with reliability from the start,they deliver outstanding image clarity and light transmission with stable,drift-free operation for accurate touch responses. small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet,has a long life cycle period and supply long-term demands.

Touch monitor adopt projected capacitive 10-point touch,sensitive sensing,accurate fixed point,anti-jamming positioning technology,small-strength touch has both sensing,fast and fast response,achieving super positioning and precise tracking.We provide one-year warranty for global customers,from product design to production,to software,to product testing,all by our company's professional team,in pursuit of perfect product operation and peripheral after-sales service.2C touch screen monitor have passed the CE,FCC,CB,RoHS,HDMI certifications.

Product Features

♦ Pure flat front panel,adopt A+grade original industrial LCD screen.

♦ Front panel is waterproof(IP65),dustproof (IP65) and explosion-proof(IK08).

♦ Industrial plastic front shell,industrial black metal frame,durable and reliable.

♦ Good sealing performance,passed EMC anti-interference testing.

♦ Dense ventilation holes on the back,efficient heat dissipation.

♦ Multi-size 4.3" to 10.1" optional,support OEM/ODM services.

Customization Options

♦ Product Size

♦ Customer Logo

♦ LCD brightness(250-1000 cd/m²)

♦ Glass of surface treatment AG,AF,AR

♦ Display ports（ VGA,DVI,HDMI,DP,USB or more）

Technical Parameter

MAIN CHIPSET	RTD2660
0SD LANGUAGE	Chinese,English,(French,Spanish,Italian,German,Portuguese,Dutch,Kore an)(0ption)
VDEO INPUT	HDMI	Format	Up to 1920*1080@50HZ
		Operating Speed	155MHz
AUDI00UTPUT	Frequency response	217Hz-20KHz @±3dB(1KHz 0dB reference signal)
	0utput power	2×1.2W(4Ω) THD+N<10%1KHz (Audio Input: 0.5VRMS)
TOUCH	Interface	USB
	Touch Pane l	4-wire resistance touch panel 6-wire capacitive touch panel
POWER TO PANEL	3.3V
Management	Standby Power Consumption<0.2W(Board Only)
KEY FUNCTIONS	MENU,UP,DOWN,EXIT,POWER

About Display Ports

Specification and Download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
4.3"	GRTD2281-V1.0JI	USB,HDMI	16:9	105.5x 67.2 mm	92.8X53.86mm	500	800x480	GRTD2281-V1.0JI-4.3.pdf
5"	GRTD2281-V1.1K	USB,HDMI	16:9	120.7X78mm	108X64.8mm	250	800x480	GRTD2281-V1.1K--5.pdf

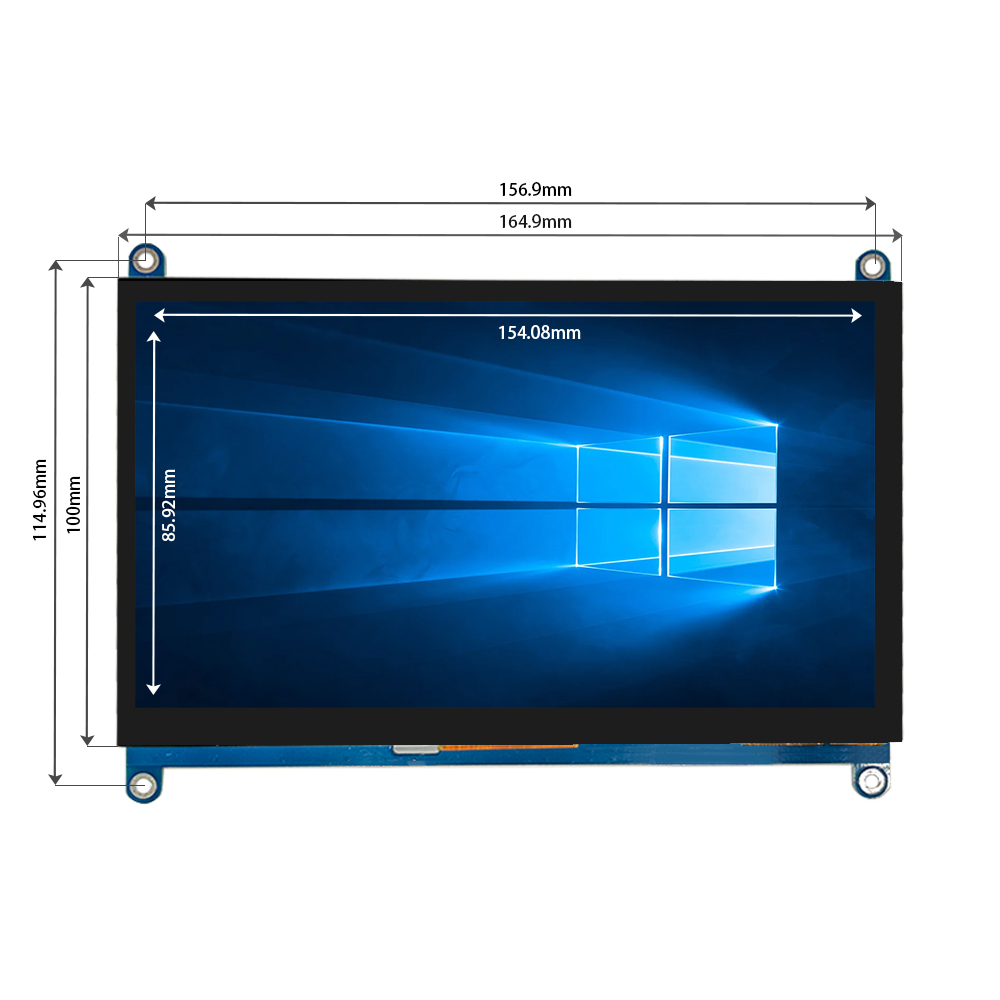

7"	GRTD2660-V1.ON	USB,HDMI	16:9	164.9 x100mm	154.08 x 85.92mm	400	1024x1080	GRTD2660-V1.0N-7.pdf
10.1"	GRTD2281-V1.0S 1	USB,HDMI	16:10	235 x 143mm	222.72x125.28mm	400	1920x1080	GRTD2281-V1.0S-10.1.pdf
