Product OverviewGreDisplay,an expert in industrial and commercial TFT LCD display solutions,was established in 2015,dedicated to the development of customized TFT LCD solutions and the expansion of the industrial LCD market,with advanced multi-screen display solutions and display control technologies.Our products are used in a wide range of commercial and industrial applications from single components to complete systems,including: digital signage,KMM,vending machines,information distribution platforms,medical equipment,test and measurement,military equipment,mobile displays and embedded applications and many other fields. |  |
 | Product Description We provide BOE,AUO,LG,Chimei Innolux,TIANMA and other international high-end A+ grade original industrial-grade LCD screens or assembled LCD screens,the size is mainly 3.2 inch to 65 inch,and also we provide customers with external wire like VGA,DVI,HDMI,DP,USB cable,power cord,power supply,interior line,video board, resistive touch screen,capacitive touch screen,infrared touch screen,industrial monitor,touch monitor and other supporting products or perfect LCD driver solutions. |
Product Features ♦ Provide original screen or assembled screen,quality assurance,the screen is no dust,no dots,no bright lines. ♦ The specifications,sizes are serialized and diversification,flexible use,easy maintenance and update. ♦ Good use characteristics,low driving voltage,flat,thin,low power consumption. ♦ High resolution,high color fidelity,high brightness and contrast,clear and delicate graphics. ♦ Can be used for industrial and commercial use,with long service life and wide application range. ♦ Good environmental protection characteristics,no radiation,no flicker,no damage to the health of users. |  |
 | Customization Options ♦ LCD brand (BOE,AUO,LG,Samsung,Chimei Innolux,TIANMA) ♦ LCD module sizes (3.2 to 65 inches) ♦ LCD brightness(200-1000 cd/m²) ♦ Accessories(External wire,Power Cord,Power supply,Interior line,Video Board) |
Accessories Show
Specification and Download
| LCD Brand | Sizes | Model | Outline Size(H×V×D) | View Area(H×V) | Contrast Ratio | Resolution | Brightness (cd/m²) | Data Download |
| AUO | 10.4" | G104XVN01.0 | 238.6x175.8x7mm | 210.4x157.8 mm | 3000:1 | 1024(RGB)x768 123PPI | 470 |  G104XVN01.0.pdf |
| AUO | 10.4" | G104STN01.0 | 243x184x7mm | 211.2x158.4mm | 700:1 | 800(RGB)x600 96PPI | 400 | G104STN01.0.pdf |
| AUO | 10.4" | G104SN03 V5 | 236X176.9X6mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 96PPI | 230 | G104SN03_V5.pdf |
| Innolux | 10.4" | G104S1-L01 | 243x184x7.3mm | 211.2x158.4mm | 700:1 | 800(RGB)x600 96PPI | 400 | G104S1-L01.pdf |
| Innolux | 10.4" | G104AGE-L02 | 243x184x7.3mm | 211.2x158.4mm | 700:1 | 800(RGB)x600 96PPI | 400 | G104AGE-L02.pdf |

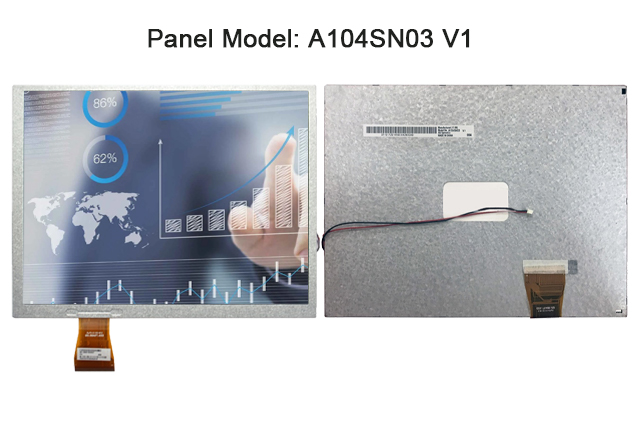

| AUO | 10.4" | A104SN03 V1 | 228.4x175x6.5mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 96PPI | 350 | G104SN03 V1.pdf |
| IVO | 10.4" | M104GNX1 R1 | 236x176.9x6.3mm | 211.2x158.4mm | 900:1 | 1024(RGB)x768 123PPI | 350 | M104GNX1_R1.pdf |
| Innolux | 10.4" | G104XCE-L01 | 225.5x176.3x9.2mm | 210.43x157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 500 | G104XCE-L01.pdf |
| Sharp | 10.4." | LQ104V1DG81 | 246.5x179.3x13mm | 211.2x158.4mm | 800:1 | 640(RGB)×480 76PPI | 450 | LQ104V1DG81.pdf |
| BOE | 10.4" | BA104S01-200 | 236x176.9x5.9mm | 211.2x158.4mm | 800:1 | 800(RGB)x600 96PPI | 300 | BA104S01-200.pdf |
| BOE | 10.4" | BA104S01-300 | 236x176.9x5.9mm | 211.2x158.4mm | 800:1 | 800(RGB)×600 96PPI | 350 | BA104S01-300.pdf |
| TIANMA | 10.4" | TM104SDH01-00 | 236x176.9x5.9mm | 211.2x158.4mm | 400:1 | 800(RGB)x600 96PPI | 400 | TM104SDH01.pdf |
| Sharp | 10.4" | LQ104S1LG81 | 246.5x179.3x13mm | 211.2x158.4mm | 600:1 | 800(RGB)x600 96PPI | 420 | LQ104S1LG81.pdf |
| Innolux | 10.4" | G104X1-L03 | 238.6x175.8x7.97mm | 210.4x157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 350 | G104X1-L03.pdf |
| TIANMA | 10.4" | P1040XGF1MA00 | 230×180×9.8mm | 210.4×157.8mm | 1000:1 | 1024(RGB)x768 123 PPI | 1300 | P1040XGF1MA00.pdf |
| Innolux | 10.4" | G104XCE-LH1 | 225.5x176.3x9.2mm | 210.4x157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 1000 | G104XCE-LH1.pdf |
| Innolux | 10.4" | G104V1-T03 | 225.5x176.3x9.3mm | 211.2x158.4mm | 1500:1 | 640(RGB)x480 76 PPI | 1500 | G104V1-T03.pdf |
| TIANMA | 10.4" | P1040XGF1MA00 | 230x180x9.8mm | 210.4x157.8mm | 1000:1 | 1024(RGB)x768 123 PPI | 1000 | P1040XGF1MA00.pdf |
| NLT | 10.4" | NL10276BC20-18 | 228x178x9.2mm | 210.43x157.8mm | 900:1 | 1024(RGB)x768 123 PPI | 400 | NL10276BC20-18.pdf |
| AUO | 10.4" | G104STN01.3 | 227.3x177.5x9.3mm | 211.2x158.4mm | 700:1 | 800(RGB)x600 96PPI | 450 | G104STN01.3.pdf |
| TIANMA | 10.4" | G104XCE-LM1 | 238.6x175.8x7.9mm | 210.4x157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 350 | G104XCE-LM1.pdf |
| NLT | 10.4" | NL6448BC33-70 | 243x185x11mm | 211.2x158.4mm | 900:1 | 640(RGB)x480 76PPI | 450 | NL6448BC33-70.pdf |
| NLT | 10.4" | NL8060BC26-35F | 243x185x11mm | 211.2x158.4mm | 900:1 | 800(RGB)x600 96PPI | 800 | NL8060BC26-35F.pdf |
| NLT | 10.4" | NL6448BC33-70D | 243x185x11mm | 211.2x158.4mm | 900:1 | 640(RGB)x480 76PPI | 450 | NL6448BC33-70D.pdf |
| Innolux | 10.4" | G104ACJ-L01 | 173.4x228.7x14.27mm | 158.4x211.2mm | 1000:1 | 960(RGB)x1280 153PPI | 900 | G104ACJ-L01.pdf |
| BOE | 10.4" | GV104X0M-N10 | 230x180x10.6mm | 210.43x157.8mm | 1100:1 | 1024(RGB)x768 123PPI | 450 | GV104X0M-N10.pdf |
| Sharp | 10.4" | LQ104V1LG81 | 246.5x179.3x13mm | 211.2x158.4mm | 800:1 | 640(RGB)x480 76PPI | 450 | LQ104V1LG81.pdf |
| TIANMA | 10.4" | TM104SDHG30-00 | 228.4x175.4x6.5mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 123PPI | 350 | TM104SDHG30.pdf |
| Innolux | 10.4" | G104X1-L04 | 225.5x176.3x9.2mm | 210.43x157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 500 | G104X1-L04.pdf |
| BOE | 10.4" | BA104S01-100 | 236x176.9x5.9mm | 211.2x158.4mm | 800:1 | 800(RGB)x600 96PPI | 500 | BA104S01-100.pdf |
| TIANMA | 10.4" | TM104SDHG30-02 | 228.4x175.4x6.5mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 123PPI | 350 | TM104SDHG30-02.pdf |
| NLT | 10.4" | NLB104SV01L-01 | 243x185.1x11mm | 211.2x158.4mm | 900:1 | 800(RGB)x600 123PPI | 400 | NLB104SV01L-01.pdf |
| NLT | 10.4" | NL8060BC26-35D | 243x185.1x11mm | 211.2x158.4mm | 900:1 | 800(RGB)x600 96PPI | 400 | NL8060BC26-35D.pdf |
| NLT | 10.4" | NL10276BC20-18C | 228x178.5x9.2mm | 210.4x157.8mm | 900:1 | 1024(RGB)x768 123PPI | 800 | NL10276BC20-18C.pdf |
| NLT | 10.4" | NL8060AC26-52D | 243x185.1x11mm | 211.2x158.4mm | 900:1 | 800(RGB)x600 96PPI | 400 | NL8060AC26-52D.pdf |
| Sharp | 10.4" | LQ104V1DG21 | 265x195x11.5mm | 211.2x158.4mm | 300:1 | 640(RGB)x480 76PPI | 350 | NL8060AC26-52D.pdf |
| TIANMA | 10.4" | TM104SBH01 | 236x176.9x7.6mm | 211.2x158.4mm | 400:1 | 800(RGB)x600 123PPI | 300 | TM104SBH01.pdf |
| NLT | 10.4" | NL8060BC26-35 | 243x185.1x11mm | 211.2x158.4mm | 900:1 | 800(RGB)x60 96PPI | 400 | NL8060BC26-35.pdf |
| Sharp | 10.4" | LQ104S1DG21 | 246.5x179.4x15.5mm | 211.2x158.4mm | 300:1 | 800(RGB)x600 123PPI | 350 | LQ104S1DG21.pdf |
| Sharp | 10.4" | LQ104V1DG61 | 246.5x179.4x13.7mm | 211.2x158.4mm | 600:1 | 640(RGB)x480 123PPI | 450 | LQ104V1DG61.pdf |
| Sharp | 10.4" | LQ104V1DG62 | 246.5x179.4x12.66mm | 211.2x158.4mm | 600:1 | 640(RGB)x480 76PPI | 550 | LQ104V1DG62.pdf |
| TIANMA | 10.4" | TM104SDH03 | 243x179.4x9.1mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 96PPI | 350 | TM104SDH03.pdf |
| TIANMA | 10.4" | TM104SDH02 | 243x179.4x8.5mm | 211.2x158.4mm | 500:1 | 800(RGB)x600 96PPI | 400 | TM104SDH02.pdf |
| AUO | 10.4" | G104VTN01.0 | 227.3×177.5×9.8mm | 211.2×158.4mm | 700:1 | 640(RGB)x480 76PPI | 370 | G104VTN01.0.pdf |
| Innolux | 10.4" | G104ACE-LH1 | 243×184×8.5mm | 211.2×158.4mm | 1000:1 | 800(RGB)x600 96PPI | 400 | |
| TIANMA | 10.4" | TM104SDHG30-71 | 228.4×175.4×6.5mm | 211.2×158.4mm | 500:1 | 800(RGB)x600 96PPI | 350 | TM104SDHG30-71.pdf |
| BOE | 10.4" | ET104S0M-N10 | 236×176.9×5.9mm | 211.2×158.4mm | 800:1 | 800(RGB)x600 96PPI | 350 | ET104S0M-N10.pdf |
| BOE | 10.4" | BA104S01-400 | 228.4×175.4×6.5mm | 211.2×158.4mm | 800:1 | 800(RGB)x600 96PPI | 350 | BA104S01-400.pdf |
| TIANMA | 10.4" | TM104SDH01-40 | 236×176.9×5.9mm | 211.2×158.4mm | 400:1 | 800(RGB)x600 123PPI | 400 | TM104SDH01-40.pdf |
| NLT | 10.4" | NL6448BC33-59 | 243×185.1×11mm | 211.2×158.4mm | 600:1 | 640(RGB)x480 76PPI | 450 | NL6448BC33-59.pdf |
| NLT | 10.4" | NL8060BC26-27 | 243×185.1×11mm | 211.2×158.4mm | 700:1 | 800(RGB)x600 96PPI | 400 | NL8060BC26-27.pdf |
| Sharp | 10.4" | LQ104V1DG52 | 246.5×179.4×15.5mm | 211.2×158.4mm | 300:1 | 640(RGB)x480 76PPI | 350 | LQ104V1DG52.pdf |
| Innolux | 10.4" | ZE104IA-03A | 220.53×168.02×1mm | 210.43×157.8mm | 1000:1 | 1024(RGB)x768 123PPI | 0 | |
| Innolux | 10.4" | G104AG1-A01 | 219.7×169.8×1.43mm | 211.2×158.4mm | 500:1 | 800(RGB)x600 96PPI | 0 | |
| AUO | 10.4" | G104SN03 V1 | 236×174.3×6mm | 211.2×158.4mm | 500:1 | 800(RGB)x600 96PPI | 230 | G104SN03 V1.pdf |
| NLT | 10.4" | NL6448BC33-46 | 243×185.1×11.5mm | 211.2×158.4mm | 300:1 | 640(RGB)x480 76PPI | 350 | NL6448BC33-46.pdf |
| NLT | 10.4" | NL6448BC33-53 | 243×185.1×11mm | 211.2×158.4mm | 500:1 | 640(RGB)x480 76PPI | 380 | NL6448BC33-53.pdf |
| Sharp | 10.4" | LQ104S1DG34 | 243×183.8×9.5mm | 211.2×158.4mm | 500:1 | 800(RGB)x600 96PPI | 250 | LQ104S1DG34.pdf |
| BOE | 10.4" | ET104S0M-N11 | 236×176.9×5.9mm | 211.2×158.4mm | 800:1 | 800(RGB)x600 96PPI | 350 | ET104S0M-N11.pdf |
| TIANMA | 10.4" | P1040XGF1MB01 | 230×175.8×9mm | 210.43×157.8mm | 1200:1 | 1024(RGB)x768 123PPI | 500 | |
| Sharp | 10.4" | LQ104S1LG75 | 242×185×13.9mm | 211.2×158.4mm | 400:1 | 800(RGB)x600 96PPI | 1100 | LQ104S1LG75.pdf |
| NLT | 10.4" | NL8060BC26-28 | 243×185.1×11mm | 211.2×158.4mm | 700:1 | 800(RGB)x600 96PPI | 400 | NL8060BC26-28.pdf |
| NLT | 10.4" | NL6448BC33-64D | 243×185.1×11mm | 211.2×158.4mm | 600:1 | 640(RGB)x480 76PPI | 450 | NL6448BC33-64D.pdf |
